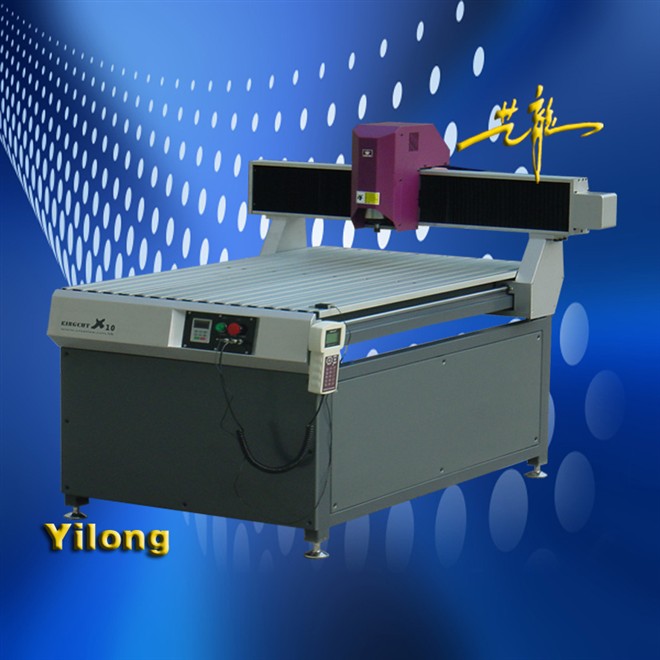

CNC engraving machine X10
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
020
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
T/T,MoneyGram,Other
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Day
Packaging:
WOODEN BOX
Mr. Li Zhuorong



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

Feature of engraving machine YL-X10

1.Integral steel structure with work area of 800mm(W)x 900mm (L) .
2. Linear ball bearing profile rails for three axes.
3. High-precision ballscrew.
4. High-quality Aluminum alloy T-slot worktable which is replaceable .
5. VECTSOFT DSP 3 axis motion controller with USB port .
6. 32M Flash Memory .
7. Accepts standard HPGL and G-code commands and complies all kinds of 3D software .
8. Handle controller with multi-languages LCD display .
9. 1200W DC brushless spindle with frequency inverter .
10. Automatic ZS sensor .
11. Maximum speed is 8m /min .



Specification

Model

YL-X10

X.Y axis motion

800mm (X)x 900mm (Y)

Z axis motion

80mm

Table size(X/Y)

800/ 1270mm

Max.Moving speed

8m /min

Max.working speed

6.0m /min

Resolution

0.005mm

Repeat resolution

0.05mm

Max.feeding height

90mm

Processor

DSP/frequency 100MHZ

Interface

USB1.1

Buffer size

32MB

Command System

HP-GL/G-Code

Computer OS

Windows98/2000/XP

Power supply

AC220V/AC110V

Power consumption(exclude spindle)

450W

DC brushless spindle

1200W

Spindle rotary speed

0~24000 rpm

External dimension

1460mm (W)x 1340mm (D)x 880mm (H)

Weight

350 kg

Operating temperature

5 to 40 °C (41 to 104 °F )

Operating humidity

35 to 80% (non-condensing)
