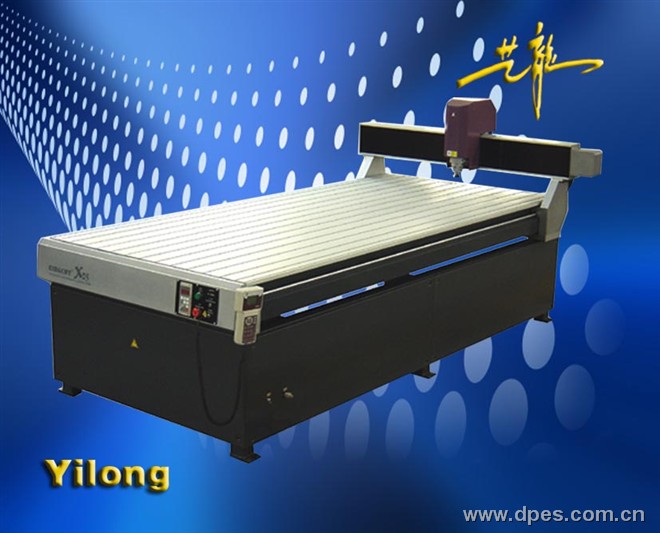

CNC engraving machine X25
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Piece/Pieces
Place of Origin:
Min. Order:
04
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
0 Piece/Pieces
Delivery Time:
Day
Packaging:
wooden
Mr. Li Zhuorong



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

Detailed Product Description

Feature:

1.       Integral steel structure with work area of 1220mm (W) x 2550mm (L).
2. Linear ball bearing profile rails for three axes.
3. High-precision ball screw.
4. High-quality Aluminum alloy T-slot worktable which is replaceable.
5. VECTSOFT DSP 3 axis motion controller with USB port.
6. 128M Flash Memory.
7. Accepts standard HPGL and G-code commands and complies all kinds of 3D software.
8. Handle controller with multi-languages LCD display.
9. 2200W DC brushless spindle with frequency inverter.
10. Automatic ZS sensor.
11. Maximum speed is 7.8m /min.



Specification

X.Y axis motion

1220mm×2550mm

Z axis motion

105mm

Table size(X/Y)

1300×2935mm

Max moving speed

7.8 m/min

Max working speed

6.0m/min

Resolution

0.003125mm

Repeat resolution

0.05mm

Max feeding height

125mm

Processor

DSP/Frequency160MHz



Interface

USB2.0

Buffer size

32M

Command System

HP-GLG-code

Computer OS

windows98/2000/XP

Power supply

AC220V

Power consumption (exclude spindle)

1900W

DC brushless spindle

2200W

Spindle rotary speed

0~2400rpm

Weight

1250kg

Operating environment

Temperature+5 ºC ~+40 ºC  ,Humidity35%70%
