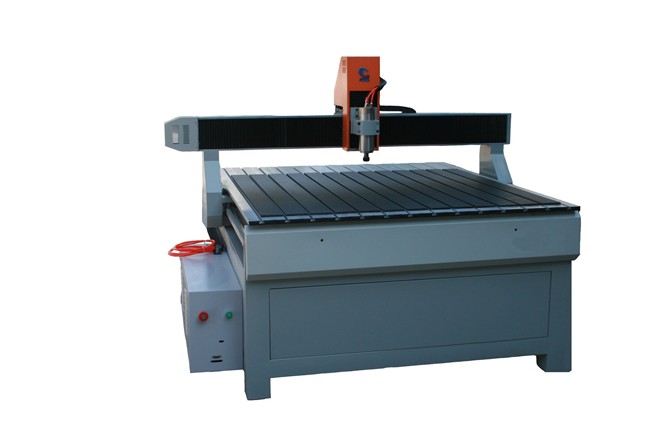

CX-13XX High Speed CNC Router
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
020
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Qingdao, China
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
0
Packaging:
standard export packing
Female. Yang Lele



Send a Message to this Supplier

Product Details Company Profile

CX-13XX High Speed CNC Router

features

1.The spindle are controlled by Software,high automization.
2.High spindle and high efficiency, idle speed can reach up to 8.8 meters/min
3.High power frequency water cooling spindle, main part are all imported,low noise,high power,long lifetime;
4.Double motors driving,high driving force,unique two-rack axises transmission, so it can guarantee no distortion and vibration when it works for long time.

technical specifications

Description

CX-1313

CX-1315

CX-1318

CX-1325

X,Y working area

1300×1300mm

1300×1500mm

1300x1800mm

1300x2500mm

Z working area

150mm

150mm

150mm

150mm

Processing accuracy

0.01mm

0.01mm

0.01mm

0.01mm

Max. Speed

8800mm/min

8800mm/min

8800mm/min

8800mm/min

Table structure

Aluminum

Aluminum

Aluminum

Aluminum

Repositioning accuracy

0.05mm

0.05mm

0.05mm

0.05mm

Command

G code*.u00*.mmg*.plt

G code*.u00*.mmg*.plt

G code*.u00*.mmg*.plt

G code*.u00*.mmg*.plt

Power (spindle is not included)

1.2KW

1.2KW

1.2KW

1.2KW

Working voltage

AC220V/50Hz

AC220V/50Hz

AC220V/50Hz

AC220V/50Hz

Spindle power

2.2KW

2.2KW

2.2KW

2.2Kw

Spindle rotating speed

0-24000rpm/min

0-24000rpm/min

0-24000rpm/min

0-24000rpm/min

Drive motor

Stepper

Stepper

Stepper

stepper
