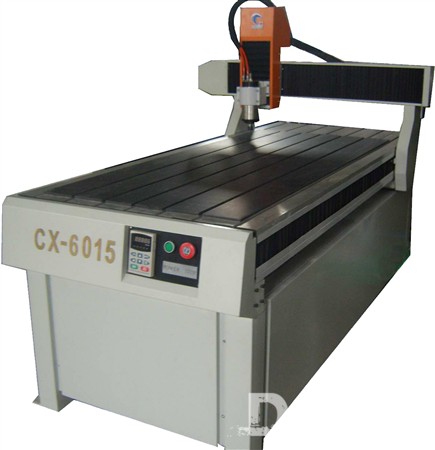

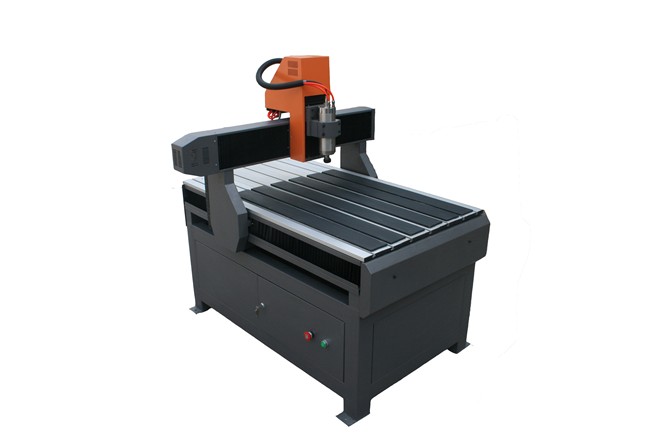

CX-6090 or CX-6015 CNC Advertising Machine
Features:
1, Three axis imported linear square orbit.
2, Three axis waterproof, dustproof structure.

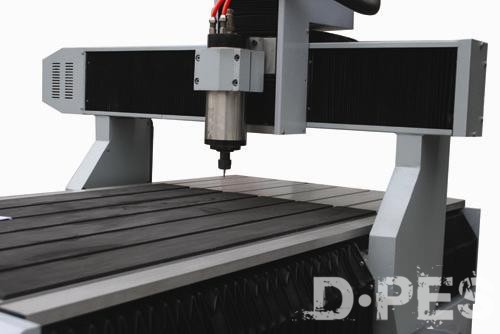

3,Imported bearings, constant torque, low noise and high power water cooing spindle.
4,Taiwan transducer with stable output signals.
5,High flexibility, uneasy distorted cable and imported electronic components.
6,This series routers are designed with 3D embossment engraving particularly for redwood, classical furniture, high precision, high speed, can satisfy any kinds of engraving work.
7,Three axis adopt dustproof, gantry mode movement, whole cast structure, strong and long lifetime ,steady working without distortion, high precision.
8,International top quality DSP handle system（OPTIONAL WEI HONG SYSTEM）. This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.
9,Germany import ball screw, original packing nut,impor5t linear square orbit.1.5KW water cooling spindle motor.

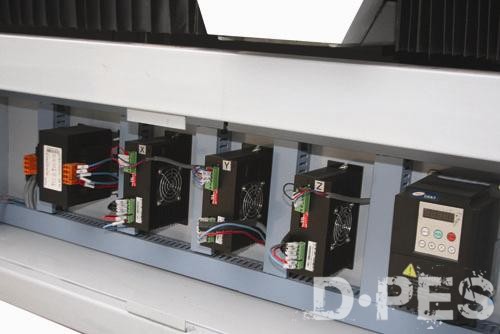

10,The water cooling spindle driver adopt imported accessories and imported transducer, low noise, long life span, low maintenance cost.
Technical parameters:
|
Description
|
CX-6090
|
CX-6015
|
|
X,Y working area
|
600mmx900mm
|
600mmx1500mm
|
|
Z working area
|
120mm
|
120mm
|
|
Processing precision
|
0.05mm
|
0.05mm
|
|
Reposition precision
|
0.02mm
|
0.02mm
|
|
Table structure
|
aluminum
|
aluminum
|
|
X,Y,Z structure
|
Ball screw
|
Ball screw
|
|
Self-consuming power
|
0.6KW
|
0.7KW
|
|
Max working speed
|
12000mm/min
|
12000mm/min
|
|
Operation command
|
G CODE
|
G CODE
|
|
Max working speed
|
10000mm/min
|
10000mm/min
|
|
Work voltage
|
AC220V/50Hz
|
AC220V/50Hz
|
|
Spindle power
|
1.5KW
|
1.5KW
|
|
Spindle rotating speed
|
0-24000rpm/min
|
0-24000rpm/min
|
|
Drive motor
|
Stepper
|
Stepper
|
