CJ-6000 solvent printer with high solution
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
00
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Week
Packaging:
wood case
Miss. Huang Kathy



Send a Message to this Supplier

Product Details Company Profile

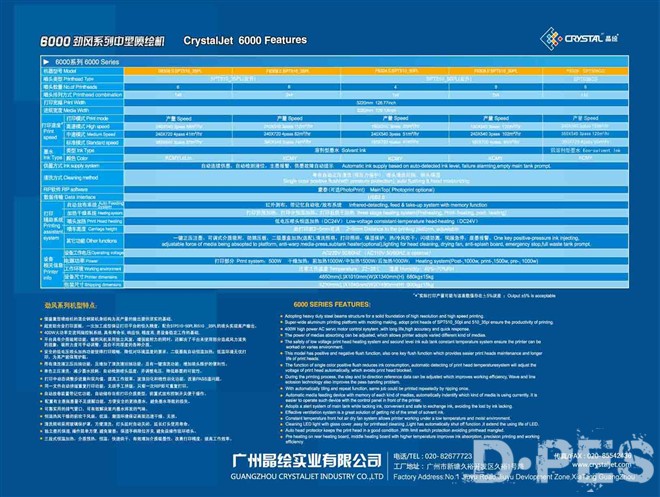

Crystaljet 6000 Features performance:

  • Adopting heavy duty steel beams structure for a solid foundation of high resolution and high speed printing.
  • Super-wide aluminum printing platform with molding making, adopt print heads of SPT 1020 and 510_35pl ensure the productivity of printing.
  • 400W high power AC servo motor control sysytem ,with long life,high accuracy and quick response.
  • The power of medias absorbing can be adjusted, which allows printer adopts varied different kind of medias.
  • The safety of low voltage print head heating system and second level ink sub tank constant temperature system ensure the printer can be worked on varies environment.
  • This model has positive and negative flush function, also one key flush function which provides easier print heads maintenance and longer life of print heads.
  • The function of single color positive flush reduces ink consumption, automatic detecting of print head temperaturesystem will adjust the voltage of print head automatically, which avoids print head blocked.
  • During the printing process, the step and bi-direction reference data can be adjusted which improves working efficiency, Wave and linear technology also improves the pass banding problem.
  • With automatically tiling and repeat function, same job could be printed repeatedly by ripping once.
  • Automatic media feeding device with memory of each kind of medias, automatically indentify which kind of media is usingcurrently. It is easier to operate such device with the control panel in front of the printer.
  • Adopts a alert system of main tank while lacking ink, convenient and safe to exchange ink, avoiding the lost by ink lacking.
  • Effective ventilation system is a great solution of getting rid of the smell of solvent ink.
  • Optional constant temperature front hot air dry fan system allows printer working under a low temperature and moist environment.
  • Cleaning LED light with glass cover ,easy for printhead cleaning ,Light has automatically shut off function ,it extend the using life of LED.
  • Auto head protector keeps the print head in a good condition ,With limit switch protection avoiding printhead mangled.
  • Pre heating on rear heating board, middle heating board with higher temperature improves ink absorption, precision printing and working efficiency

Model
S6306SPT510_35PL
F6308SPT510_35PL
F6304SPT510_50PL
F6308SPT510_50PL
Printhead
SPT510_35PL
SPT510_50PL
No of Printheads
6
8
4
8
Printhead Sequency
1×6
2×4
1×4
2×4
Print Width
3200mm 125.98inch
Media Width
3220mm 126.77inch
Print speed
Print mode
speed
High speed
240X540 3pass 56m²/hr
240X540 3pass 112m²/hr
180X540 3pass 65m²/hr
180X540 3pass 130m²/hr
Middle speed
240X720 4pass 41m²/hr
240X720 4pass 82m²/hr
240X540 3pass 51m²/hr
240X540 3pass 102m²/hr
Standard speed
360X540 3pass 37m²/hr
360X540 3pass 74m²/hr
180X720 4pass 47m²/hr
180X720 4pass 94m²/hr
Ink Type
Ink Type
Solvent Ink
Color
KCMYLcLm
KCMY
KCMY
KCMY
Ink supply system
Automatic ink supply based on auto-detected ink level, failure alarming,empty main tank prompt.
Cleaning method
Single color positive flush(with pressure protection), auto flushing & head moisturizing
RIP software
MainTop( Photoprint optional)
Interface
USB2.0
Printing assistant system
Auto feeding system
Infrared-detecting, feed & take-up system with memory function
Heating system
three stage heating system(Preheating, Print- heating, post- heating)
Head heating
Low-voltage consistant-temperature head-heatingDC24V
Height of the tray
2~5mm Distance to the printing platform, adjustable
Other functions
One key positive-pressure ink injecting, adjustable force of media being absopted to platform, anti-warp media-press,subtank heater(optional),lighting for head cleaning, drying fan, anti-splash board, emergency stop,full waste tank prompt.
Printer info
Voltage
AC220V 50/60HZ AC110V 50/60HZ is optional
Power
Print system500W Heating system(Post-,1000w, print-,1500w, pre-, 1000w)
Working environment
Normal temperature22~28      Himidity40%~70%RH
Machine size and weight
4850mm(L)X1010mm(W)X1340mm(H) 680kg±15kg
Shipping size and weight
5230mm(L)X1040mm(W)X1480mm(H) 900kg±15kg
