K45MT-DT
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Qingdao,Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Day
Packaging:
in veneer box.
Ms. Tracy King



Send a Message to this Supplier

Product Details Company Profile

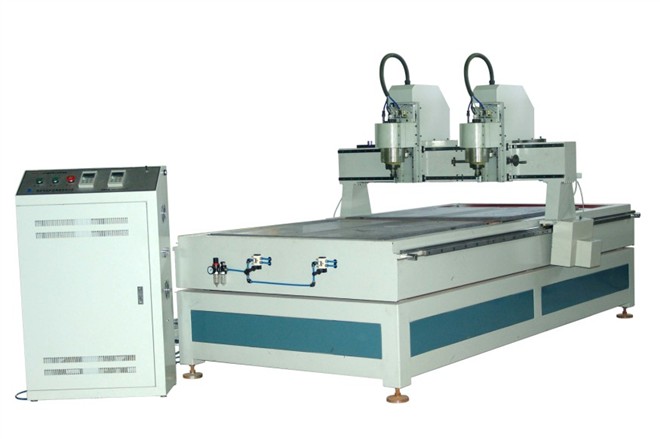

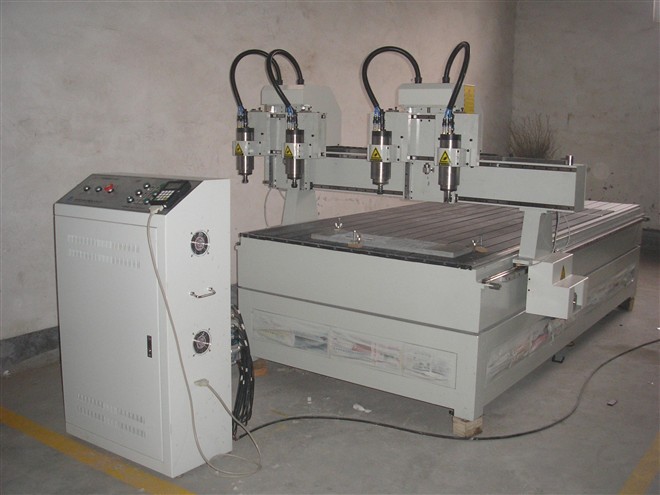

Model

K45MT-DT

X-Y-Z axis working area

1,300 x 2,500 x 200mm

Machine size

2,150 x 3,150mm

Resolutions

0.025mm

X-Y movement

Rack and pinion, gear drive/Taiwan

Z movement

Ball screw drive/Germany

Guide

Linear 20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

15,000mm/min

Spindles(Both)

4.5kw(air cooling/Chinese

Spindle speed

18,000rpm

Inverter power

7.5kw

Drive motors

stepper

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.2

Collet

ER32-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 (Digital Signal Processor)

Packing dimensions

2260 x 3250 x 1960 mm,1450 kgs

Equipment optional

a.Auto cut adjusting device

b.Oil lubrication system

c.Clamps fitting without vacuum suction
