SW2040 CNC router
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
SW2040
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Shanghai
Payment Terms:
L/C ,D/A,D/P,T/T,Western Union,MoneyGram,Other
Show Buyers your Ability to Supply:
Production Capacity:
1000 Set/Sets
Delivery Time:
deliver within 12 workingdays after order confirmed
Packaging:
wood case
Miss. Jin Aileen



Send a Message to this Supplier

Product Details Company Profile



High speed:

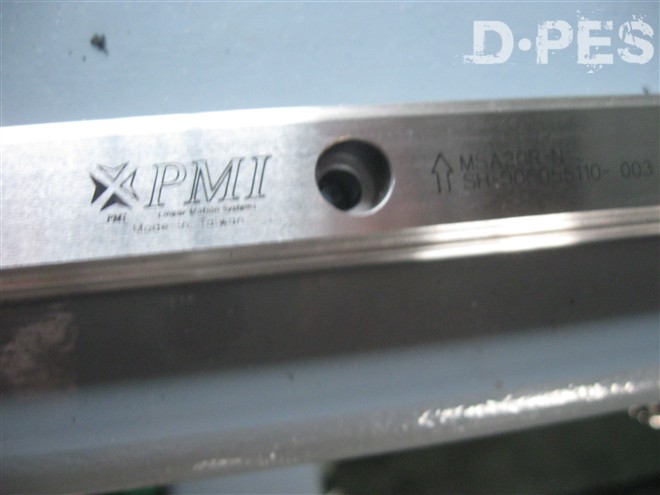

Synchronization of processing curves and straight lines can operate at the speed of 25m/min with the powerful spindle motor and high quality linear rail as PMI and precision screw rolling ball from Germany

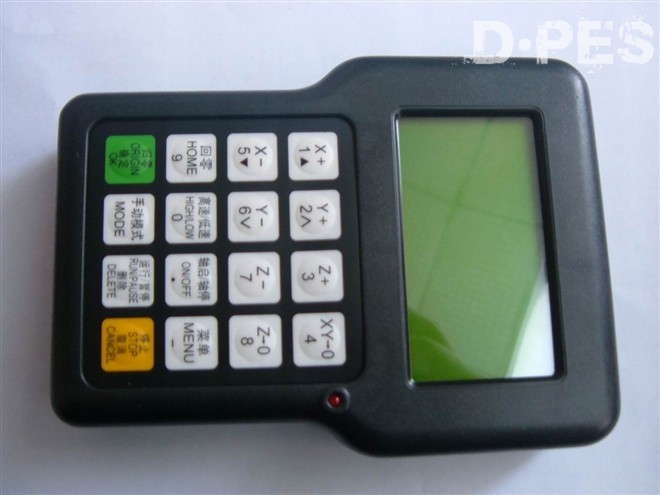

*Advanced system

adopt advanced DSP controlling system with USB interface standard configured with 128M memory capacity so as to support transmitting data directly from UBS disk, which can save 30 processing files simultaneously (enclosed with 256M USB disk );compatible with TYPE3 / ARYTCAM / PROE / UG,etc.

 *Perfect structure

Adopt industrial tool machine structure, equipped with large power spindle motor and high precision rail.

*Convenient operation

Adopt advanced USB interface to work without compute. Not occupying resources. Restore from power off, continuation on break point, anticipate working time, auto-feeding blades, friendly designing.



Technical Data

Model

SW1313

SW1318

SW1325

SW1520

 SW1630

 SW2030

SW2040

Working Area

1300*1300

*150mm

1300*1800

*150mm

1300*2500

*150mm

1500*2000 *150mm

1550*3000*

150mm

2000*3000*

150mm

2000*4000

*150mm

Spindle Motor

2.2KW

3KW inverter-driver constant power spindle motor cooled spindle motor

Motion Speed

25000mm/min

Rotating Speed Of Spindle

6000-24000rpm

Engraving Tools

3.175 , 4, 6,12.7mm(optional)

Dictate Fomat

HPGL,G-code

Resolution

0.01mm



*Dust Collecting System (optional)

 *Vacuum System (optional)

 *Dust Collecting System (optional)
*Vacuum System(optional)

*More power spindle motor can be mounted according to your

Requirement
*Servo system (optional)
