SKYJET UV FlatMaster and GlassMaster
SKY Air-ship company is one of
the earliest companies which is engaged in researching and developing UV
Flatbed printing equipments. It obtains sufficient technology on print heads
controls, accurate ejecting, UV curable inks with large color gamut and good
curable intensity. SKYJET UV Flatbed printer’s reliability has been proved for
over 4 years at customers’ site with great satisfaction.
To print on whatever you want
Using environmental friendly UV
technology with non-plate and non-mesh process, SKYJET UV Flatbed printer can
print onto almost all the flexible and hard materials. You can achieve
efficient processing with small foot print, single operation and easy use. It
is good match for small to medium runs in many fields such as advertisement,
decoration, glass processing, etc.
Technology
Advantages:
u Large and true flatbed design
adopts a creative strong six-zone sectional vacuum or up-down wheels built-in
table to keep media stationary on a flat surface with accurate registration.
Heavy duty chassis ensures many years durable time, enabling to hold heavy
materials virtually up to 100mm in thickness.
u Negative pressure ink supply
system controls traditional colors, white ink and varnish separately. Correct
ejecting is achieved by state of fine printhead technology with built-in
temperature sensor and heater. This ensures fluent and continuous print without
auto cleaning during printing, much UV ink will be saved each year.
u Using Konica Minolta KM512-14pl
print heads, the max print resolution can reach up to 1440dpi. Caldera or
Photoprint Rip software and SkyJet Manager V9.22 with “Feather” processing
options get vivid and sharpness printed images.
u Basic 4 colors, 6 colors, white
and varnish options are available. White options of overlay white, underlay
white, fill white, spot white and under color white achieve wonderful white
applications. Clear top coating varnish as a separate application is used to
increase outdoor durable life, avoid scratch and add or reduce gloss.
u Unique two ways print function
of printing forward and backward at ease, which makes overlay white and
underlay white options easy to switch, and saves X-beam’s returning time.
u Integrated P.H. capping device
while in parking protects the nozzles from light and dust automatically, which
extends print heads using time and reduces ink usage.

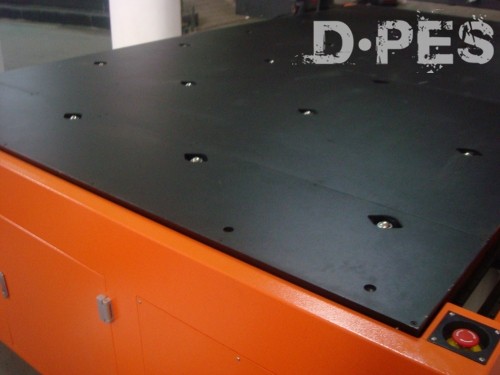

u The bed is equipped with media
locating pins for accurate materials replacement, which results in repeated
accuracy between prints.
u
More
application
Applicable to a wide range of
materials, including hard media like glass, ceramic tile, composite aluminum,
metal, wood, stone, billboard, acryl, Plexiglas, foam board, packaging paper,
and flexible media like wall paper, glistening film, canvas, carpet, leather,
paper and more.
What’s
GlassMaster for?
SKYJET UV Glass Master has an
up-down wheels table, which is convenient to load or upload heavy large size
materials, and it is good match for large batch of glass, wood, stone and other
heavy materials processing.
Technical
Specification of GlassMaster
GLASSMASTER3022
& GLASSMASTER2522
Print
Area: 3.05mX2.2 m & 2.5mX2.2m
Table
Type: Up-down Wheels Table
Max
Printing Speed: 24m2
