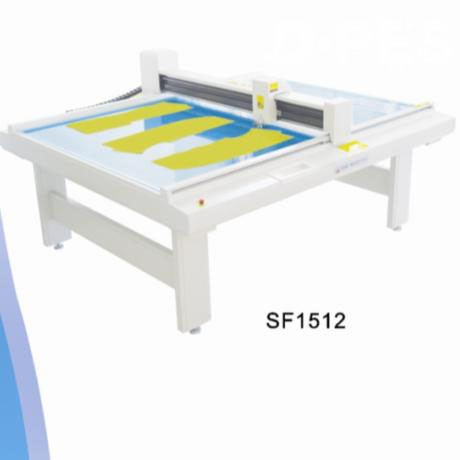

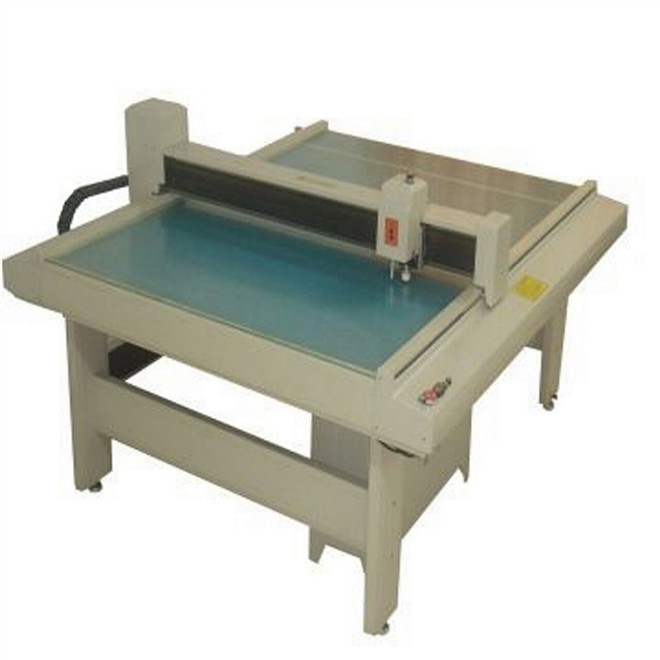

Garment Sample Maker Machine-1
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
SF1512
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Unit/Units unit
Place of Origin:
Min. Order:
125
FOB Price:
USD 20000.00-50000.00 /
Shippment Port:
FOBshanghai
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
30 Unit/Units
Delivery Time:
20 days
Packaging:
wooden box
Mr. Huo Jack



Send a Message to this Supplier

Product Details Company Profile

Technical Parameter:


        Type:                                                          SF1512

Effective Cutting Area                                       1500*1200mm

   Max Speed:                                                    1300mm/s

Control Line& Driver                                                servo

 Fixing Paper Way                                            vacuum absorbing

 Cutting Materials                red hard paper, plastic board, white board, kraft paper, fibre

   Cutting Way                                      drawing by pen, half cutting, all-cutting

Cutting Thickness                                               0.5mm-2.0mm

 Cutting Precision                                                  《0.05mm

  Resolution Ratio                                                    0.025mm

  Time&Character                 continuous work, operating computer& cutting at the same time,

                                                              linear high-speed transmission for data

 Transmitting Port                        international standards: parallel port/RSC232 serial port

 Capacity of Buffer                                                large capacity

       Format                                                          HP-GL or DXF

   Control Board                               LTD, all-chinese operating menu, contact button

     Tool Type                                                     special steel blade

      Pen Type                                          general signing pen, oil pen, ball pen

    Main structure                  platform, head, driving system, control cabinet,control micro computer, frame, vacuum pump

       Voltage                                                     220-240V, 50-60Hz

         Fuse                                                                      5A
