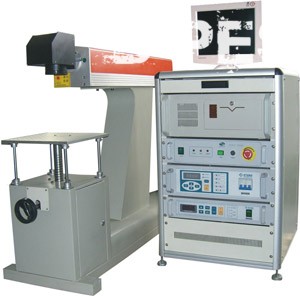

YAG Laser Marking system for partial nonmetallic material
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
SYM50
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Guangzhou/Shanghai
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
2 Cubic Meter/Cubic Meters
Delivery Time:
3 days
Packaging:
Standard plywood case for export
Mr. Luo Neal



Send a Message to this Supplier

Product Details Company Profile

Equipment performance

YAG Laser Marking system adopts digital cintrol system which is speedy, and precious. Marking has non-touched process, permanent marking effect, humanized operation, and stable running. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc.Desktop Laser Marking systemcan realized automatic edition and correction of characters, signs, graphs, images, bar codes,two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TIF fonts directly. It meets the demand of mass on-line and off-line industrialized production.

Application fields

Desktop Laser Marking system is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles,instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication,food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. Desktop Laser Marking system is suitable to mark on all kinds of metal and partial nonmetallic material.

Optional configuration

Online flying marking,Rotary marking.

The main technical parameters

Type specification

SYM50ZA+ / SYM50ZB+ / SYM50ZC+

Wave length of laser

1.064μm

Acousto-optics modulation frequency

200Hz50kHz

Laser power

≤50W

The max. marking speed

7000mm/s

The marking scope

70×70mm or 100×100mm

Repetition precision

0.01mm

The marking depth

0.05mm0.2mm (according to the material)

Power supply

380V (220V) / 50Hz / 5kVA

Cooling way

Integration
constant temperature circulation water cooling

Control way

Digital
