Equipment Type

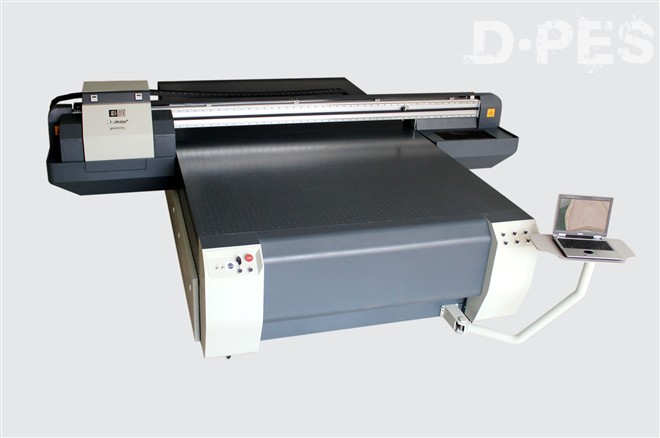

                                    UV2030S

Printing length

3.0m

Printing width

2.0m

Printing head type

Konica KM512, 14PL (Japan)

Printing head pcs

4/5/6/7/8/12/16 pieces

Printing resolution

2880x720 DPI

Printing speed

8-24㎡/h

Color

4 colors / double 4 colors/ 6 colors/ double 6 colors(white or varnish)

Rip software

Photoprint DX10.0 KINCOLOR VERSION

Platform model

Suction platform

Suction platform area

 4  design

Material thickness

 0mm-70mm

Color range

 1680million

Media type

 PE, PP, ABS, PMMA, PS, PETG, PU, PVC, PVB,Acrylic, Glass, Wood,    Metal,Leather and Wallpaper, etc.

Image format

 TIFF/JEPG/BMP/PDF/AI/EPS/PSD/CDR

Printing technology

 Drop-on-demand piezo Electric

Positioning mode

 Ink drop search positioning system

UV curing system

 Intergration technology or independent developed UV lightcuring system

X axis  printing

 Bidirectional printing and unidirectional printing

Y axis printing

  Unlimited printing and repeatedly, pixel precision positioning

Printing head maintenance

 Automatically cleaning and ink washer

Ink supply system

 World famous negative pressure ink supply system

Output port

  USB

Power supply

50/60HZ 220V(±10%)>15A

Operation environment

Optimum temperature: 16-20℃     relative humidity: 40%-70%

Packing dimension

3980mm x2200mm x1780mm
