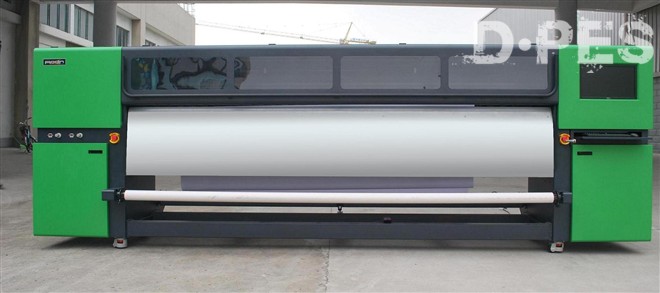

UV PRINTER--RODIN
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
P9320-UV
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets PIECE
Place of Origin:
Min. Order:
120
FOB Price:
USD 20000.00-50000.00 /Set
Shippment Port:
SHANGHAI/GUANGZHOU
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
0
Packaging:
Package Dimension:L4880mm×W1060mm×H2060mm
Mr. XU francis



Send a Message to this Supplier

Product Details Company Profile

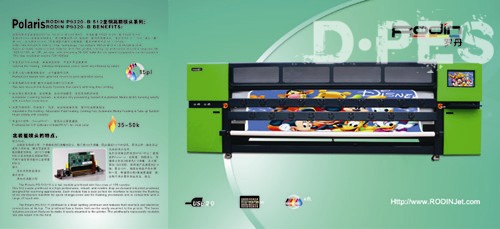

FEATURES:

1.SPECTRA POLARIS PQ512 / 15pl Technology made in USA.

Two options: P9320-B (8 H ) & P9320-B (4 H)

Spectra heads made of steel material with 18k golden coating, so endurance ensure a long use

life. .PQ512/15PL at 15PL dot size , with frequency 30-50K make the trio speed compared to

current products  .The max resolution reachs 720*1440dpi.

2.Optional Mid Heating , individual temperature control. Aovid any influence by nature.

3. Humanized design with upturned covers to save operation space.

4.Two way Vacuum Ink Supply Systems that satisfy with long time printing.

5.Automatic Cleaning System , Automatic Dry-preventing System & Automatic Media Width Sensing satisfy with excellent experience.

6.Adjustable Pre-heating, Adjustable Post-heating, Cooling Fan, Automatic Media Feeding & Take-up System helps satisfy with stability.

7.Professional RIP software (PhotoPRINT) for vivid color.

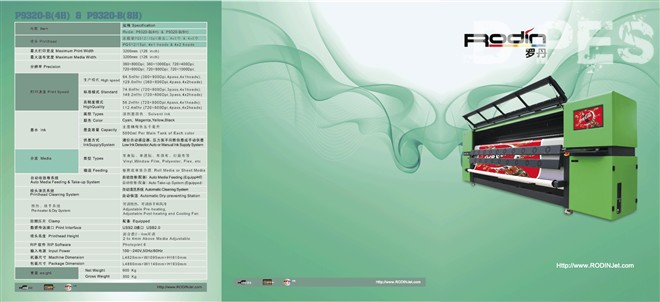

SPECIFICATIONS:

 Item Specification
Rodin  P9320UV(4H)
  Printhead
PQ512/15pl, 4x1 heads
Maximum Print Width   3200mm  (126  inch)
 Maximum Media Width 3200mm  (126  inch)
 Precision 720×600Dpi; 720×800Dpi; 720×1000Dpi;
 Print Speed    High speed  24.4  m2/hr  (720×800Dpi,8pass,4x1heads);
   High Quality 12.2  m2/hr  (720×800Dpi,16pass,4x1heads);
 Ink    Type  UV Ink
   Color  Cyan,Magenta,Yellow,Black
   Capacity
  5000ml Per Main Tank of Each color
   Ink Supply System   Low Ink Detector,Auto or Manual Ink Supply System
Media     Types  Vinyl,Fabrics, Polyester, Flex, etc
   Feeding   Roll Media or Sheet Media
  Auto Media Feeding (Equipped)
Auto Media Feeding & Take-up System   Auto Take-up System (Equipped)
  Cleaning printhead for each color
  Printhead Cleaning System

   Dry System   Double UV Lamps
   Clamp    Equipped
   Print Interface   USB2.0
   Printhead Height    2 to 4mm Above Media Adjustable
   RIP Software   Photoprint 6
   Input Power   100~240V,50Hz/60Hz
   Machine Dimension   L4820mm×W1095mm×H1610mm

   Package

    Dimension

     L4880mm×W1060mm×H2060mm
    weight Net Weight    630  Kg
Gross Weight    880  Kg
