FEATURES:
Pre-heating,Post-heating&Cooling/Automatic Head Cleaning System&Maintenance Station/ Automatic Media Width Sensing&Cutting.

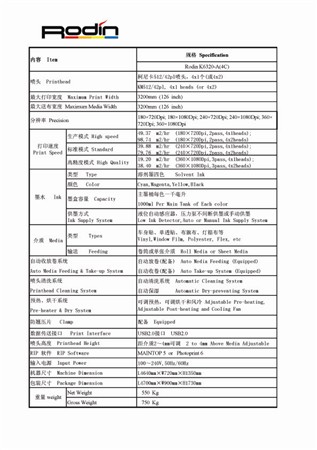

SPECIFICATION:
| Item |
Specification |
| Rodin K6320-B(4C) |
| Printhead |
|
| KM512/14pl, 4x1 heads (or 4x2) |
| Maximum Print Width |
|
3200mm (126 inch) |
| Maximum Media Width |
3200mm (126 inch) |
| Precision |
360×1440Dpi; 720×720Dpi;
720×1080Dpi; 720×1440Dpi;
|
| Print Speed |
High speed |
23.56 m2/hr (360×1440Dpi,4pass,4x1heads); 47.12 m2/hr (360×1440Dpi,4pass,4x2heads) |
| Standard |
25.29 m2/hr (720×720Dpi,2pass,4x1heads);
50.58 m2/hr (720×720Dpi,2pass,4x2heads)
|
| High Quality |
12.64 m2/hr (720×1440Dpi,4pass,4x1heads); 25.28 m2/hr (720×1440Dpi,4pass,4x2heads) |
| Ink |
Type |
Solvent Ink |
| Color |
Cyan,Magenta,Yellow,Black |
| Capacity |
|
| 1000ml Per Main Tank of Each color |
| Ink Supply System |
Low Ink Detector,Auto or Manual Ink Supply System |
| Media |
Types |
Vinyl,Window Film, Polyester, Flex, etc |
| Feeding |
Roll Media or Sheet Media |
|
Auto Media Feeding (Equipped) |
| Auto Media Feeding & Take-up System |
Auto Take-up System (Equipped) |
|
Automatic Cleaning System |
| Printhead Cleaning System |
Automatic Dry-preventing System |
|
Adjustable Pre-heating, Adjustable Post-heating
and Cooling Fan
|
| Pre-heater & Dry System |
| Clamp |
Equipped |
|
| Print Interface |
USB2.0 |
| Printhead Height |
2 to 4mm Above Media Adjustable |
| RIP Software |
Photoprint 6 or UP |
| Input Power |
100～240V,50Hz/60Hz |
| Machine Dimension |
L4640mm×W720mm×H1350mm |
|
Package
Dimension
|
|
L4700mm×W900mm×H1730mm |
| weight |
Net Weight |
550 Kg |
| Gross Weight |
750 Kg |
We possess:
----2,4000 square meters manufacture base located in middle area of Suzhou Industry Park, and many modernized manufacturing lines provide you the first-class digital printer;
----A high-tech team with research & development, with experiences and concept for many years, provide you the ripe, steady and high- tech productions;
----Perfect after-service and technicians, with skillful technology and best service attitude, provide you the timely and effective service.
Quality is the promises of each Hijet people. We will provide customers the best production and service with the innovative technology and unceasing improving.
