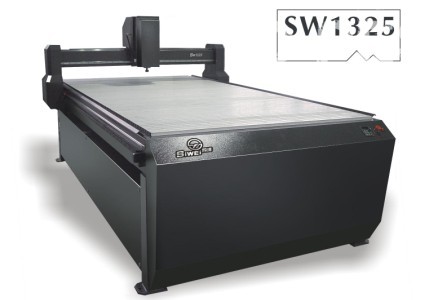

CNC wood router
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
SW1325
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
00
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
L/C ,D/A,D/P,T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
800
Delivery Time:
0
Packaging:
wooden case
Miss. Jin Aileen



Send a Message to this Supplier

Product Details Company Profile

PROPERTY  FEATURES of   woodworking  engraving machine

*High speed processionnchronization of processing curves and straight lines can operate at the speed of 25m/min.



Advanced system

adopt advanced DSP controlling system with USB interface standard configured with 128M memory capacity so as to support transmitting data directly from UBS disk, which can save 30 processing files simultaneously (enclosed with 256M USB disk );compatible with TYPE3 / ARYTCAM / PROE / UG,etc.



 *Perfect structure

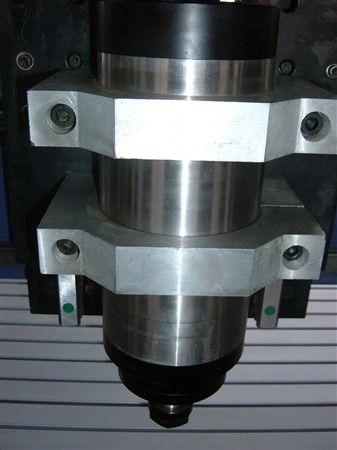

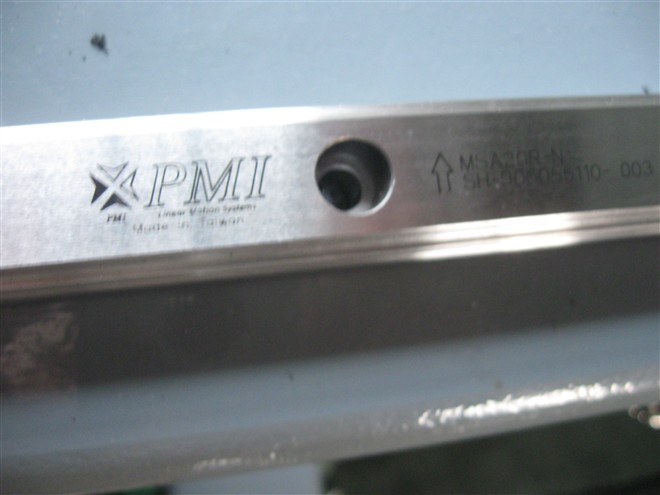

adopt industrial tool machine structure,equipped with large power spindle motor and high precision rail.



 *Convenient operation

adopt advanced USB interface to work without compute. Not occupying resources. Restore from power off,continuation on break point,anticipate working time,auto_feeding blades,friendly designing.



Technical  Data



Model

SW1515

 SW1325

 SW1520

 SW1630

 SW2030

Working Area

 1500*1500*150mm

1300*2500*150mm

1500*2000*150mm

1550*3000*150mm

2000*3000*150mm

Spindle Motor

 3KW inverter-driven constant power spindle motor cooled by water

Motion Speed

 25000mm/min

Rotating Speed Of Spindle

 6000-24000rpm

Engraving Tools

 3.175 ,     4,  6,  12.7mm(optional)

Dictate Fomat

 HPGL,G-code

Resolution

 0.01mm






*Dust Collecting System(optional)

*Vacuum System(optional)

*Dust CollectingSystem(optional)
*Vacuum System(optional)

*More power spindle motor can be mounted according to your requirement
*Servo system(optional)
