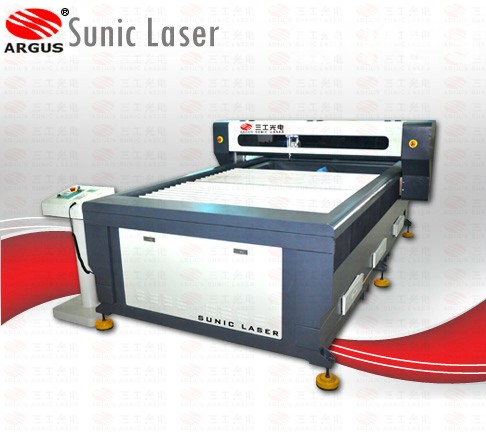

High speed & precision Laser Cutting machine SCK1325
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
SCU1325
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai/Guangzhou
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
3 Set/Sets
Delivery Time:
Week
Packaging:
Standard Plywood case for Export.
Mr. Luo Neal



Send a Message to this Supplier

Product Details Company Profile

Laser Cutting machine

Equipment performance

1, Excellent precision ,quick speed.

2,  Good rigid structure ,high stability

3,  Machine tool movement adopt imported High-precision ball teaching screw linear guide.

4,  The special moduled steel frame structure to reduce the mechanical trouble effectively, routeway feeding to satisfy material of different length.

5,  Anodized aluminium lamella table

6,  Industrial constant cooling system

7,  Slide strut bar to support material forward to all directions.

8,  Hydraulic protection control system

9,  Inflatable protection control system,

10, The device of exhaust smoke and dust.

11,  Invariable laser path (patent of sunic) is applied in the machine.



Optional configuration

Honey-comb worktable(for garment line), USB interface work offline; Touch screen control system,Step driver,Single ballscrew drive,Double linear guide drive.

Available Materials

Widely applied in cutting thick non-metallic material,it is suitable cutting thick Acrylic,Wood,Plastic,Bamboo,ABS and  thin metal sheet, such as mild steel,stainless steel,aluminum board,copper foil and other related metal material.



Main technical parameters



Specification

SCC1313/SCC1318/SCC1325/SCC1825

 Laser power

100W / 150W / 200W

Connecting way

PCI / USB online/offline  reading U flash

Working platform size

 1300×1300mm

1300×1800mm

1300×2500mm

1800×2500mm

cutting speed

≤1150 mm/s

Repeated accuracy

                           ≤0.005mm

Minimum Line width

0.1mm

Cooling way

Water cooling

Power supply

220V / 50Hz / 2kVA
