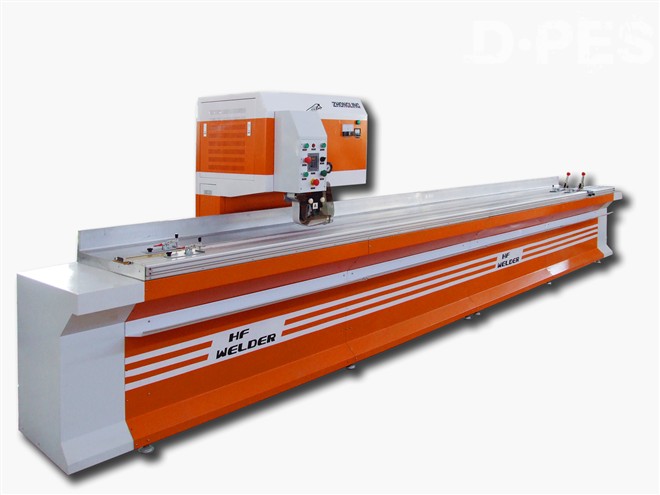

ZL3000S-805 Welding machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
ZL3000S-805
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
30 Set/Sets
Delivery Time:
Month
Packaging:
Wooden cases
Mrs. Zhou Jessica



Send a Message to this Supplier

Product Details Company Profile

The IMPROVEMENT for ZL3000S-805:
(1) For the operating table, the improved rail material connected with the machine stand by a high-tech proceeding way to ensure a better stability and more precision in sizes so that easier to install;

(2) For the machine outside looking, the nice protecting cover effectively to protect material pieces and other rubbishes enrolled into the rails as well as to make the machine look much nicer;

(3) For the operating system, air compressor, voltage stabilizer and controller are all fixed into one solid unit so that the operation becomes much more safe and convenient; while the insulating tape is improved and replaced by a back-and-forward circulating band together with additional protection sheet to make the structure of the welding head more nice-looking, more concise and safe.

Main Technical Parameter:
Working table Length: Free Choice (3m/unit, Standard: 6m, up to 33m plus)
Floor Requirement: 7.8 m2
Pack Size: Main Machine 1660x980x1010(mm)
Welding Table:3180×960×800(mm)
Welding Width: 10mm-50mm
Weight: 750kg
Welding Speed: 1-6m/min
Rated Voltage: Single Phase 50Hz, 220V±10%
Rated Power: 3KW,5KW
Frequency: 27.12MHz ±0.5%
Working Pressure: 2-4Kg
Cooling: Air cooling
Air Requirement: 6 bar
Certification: CE & C-TICK
