Big Laser Engraving and Cutting Machine YH-G1616
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1616
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets not mention
Place of Origin:
Min. Order:
120
FOB Price:
1000.00-8000.00 /Set
Shippment Port:
Shanghai, Tianjin, Qingdao and other Chinese Main Port
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
export standard wooden case
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

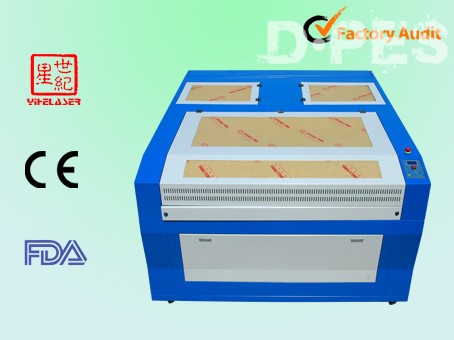

YH-G1616 Laser Engraving and Cutting Machine

Technical parameters:





YH-G1616 Single/Dual Head Laser Engraving Cutting Machine

Technical parameters:

Model

YH-G1616

Laser type

Sealed CO2 laser tube

Laser power

80W/ 100W/ 110W/ 120W/ 130W

Engraving area

1556*1556mm(61.26"*61.26")

Cutting area

1600*1556mm(63.01"*61.26")

Appearance size

2090*2015*1035mm(82.28"*79.33"*40.75")

Engraving speed

0-800mm/s

Cutting speed

0-18000mm/min

Cutting thickness

0-40mm

Characters

2.5mm English letter, 3.5mm Chinese character

Positioning precision

±0.01mm

Electric lift platform

Adjustable height of 350mm

Format support

AIBMPPLTDXFDST etc

Power supply

AC220V± 5% / 50HZ-60HZ

Engraving area: 1600x1550mm
Appearance size: 2090x2015x1035mm
Engraving speed: Max.800mm/s
Cutting speed: ≤18000mm/min
Cutting thickness: ≤40mm
Positioning precision: plus or minus 0.01mm
Support file format: AI.BMP.PLT.DXF.DST
Minimum shaping characters: Chinese characters: 3.5mm, English height: 2.5mm
Power of machine: ≤1250W
Electric lift platform: Adjustable height: 300mm
Auxiliary rotary device: Optional
Structure of machine: Detachable
Power supply: 220V/50Hz-60Hz



Product features:

·         This is a new model, which is designed specially for big size processing purpose...

·         Professional moving control design, adopt imported motor of high power and high-quality transmission system, high speed and high precision...

·         Complete function, safe and stable, unique no water warning and automatic protection system, protect the working life of the laser tube effectively. The power control system has unique automatic protection equipment to ensure the stability and safety of the machine to the greatest degree

·         Electronic control lift platform, easy and flexible to operate, and could engrave the material with different heights

·         It supports various file formats PLT, BMP (1bit), DXF, AI etc. And it can carve various graphs and words

·         Red light position system realizes the high position without laser.

·          (Optional) Auxiliary rotary device: Process the cylinder object and break through the engraving limit of 2-dimenision.

Applicable materials:

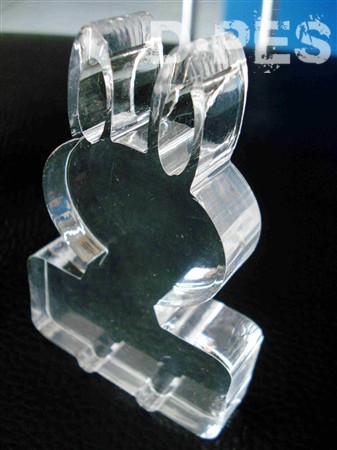

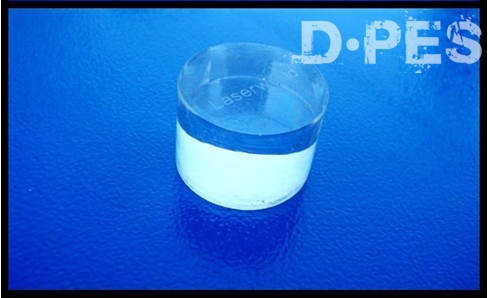

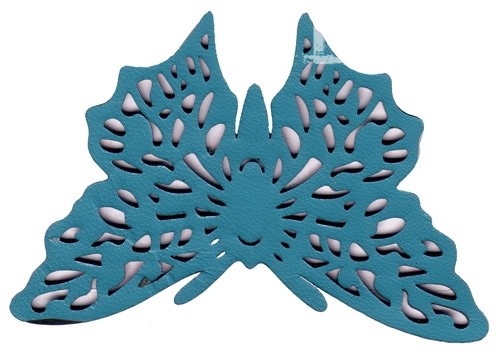

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal    materials

Applicable industries:

  • Packing printing: paper carton, knitting bag, handbag, rubber board for printing.
  • Advertisement: acrylic cutting, label making, double-colored board engraving.
  • Art and gift: wood, bamboo, image, ornament, prizes engraving.
  • Leather and garment: leather, leatheroid, garment embroidery and sampling...
  • Others: sample, marking, model-making, surface drawing, decoration etc.
