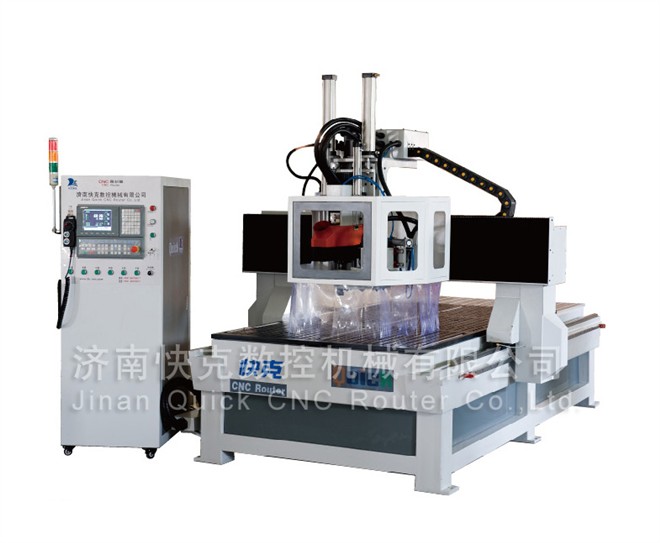

K1325AT/F0808C Woodworking Wood Engraving cutting CNC ROUTER Auto Tool Changing
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
K1325AT/F0808C
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
10
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:
Miss. Bella Wang



Send a Message to this Supplier

Product Details Company Profile

K1325AT / F0808C Series

Technical Parameter:

Model

K1325AT/F0808C

X-Y-Z axis working area

1,300 x 2,550 x 300mm

Machine size

2,650x 3,150mm

Resolutions

0.025mm

X-Y movement

rack and pinion, gear drive/Taiwan

Z movement

ball screw drive/Germany

Guide

Linear 30 square/Taiwan

Max. speed

60,000mm/min

Max. cutting speed

30,000mm/min

Spindle power

9kw(wind cooling)/Italy HSD

Spindle speed

24,000rpm

Inverter power

11kw

Drive motors

Servo/Japan YASKAWA

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.0

Collet

ISO30-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

SYNTEC/Taiwan

Packing dimensions

2300 x 3350 x 2280mm,2500kgs

Equipment included

A. Oil lubrication system

B. Auto adjusting device

C. Vacuum system

D. Dust collector
