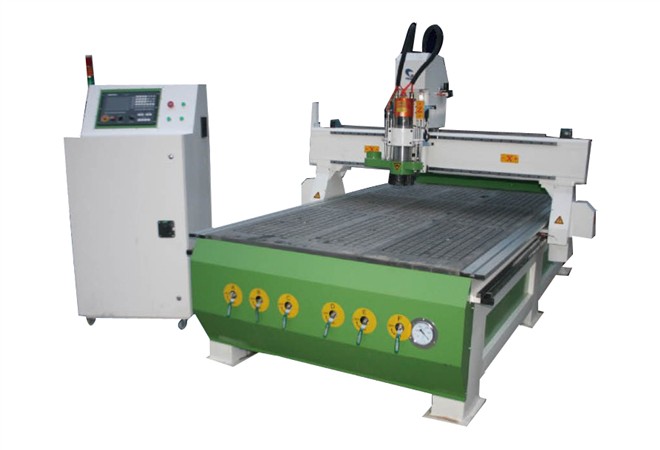

M25 woodworking machine with ATC (fixed on front or back of table)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
M25
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
qiangdao
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
wooden case
Female. Yang Lele



Send a Message to this Supplier

Product Details Company Profile

M25 woodworking machine with ATC (fixed on front or back of table)



Feature:



1. Adopt linear-square orbit, whole machine is welded with seamless steel structure, can bear heavy loading.

2. Ball screw for z axis and gear-wheel for x and y axis

3. TAIWAN LNC control system. Intelligent anti-transgress-process protection system. The function can prevent from crashing when the design zone is beyond the process zone.

4. Vacuum table and dust collector system with 6 zones separately control, auto tool changing system. No oil pump and dust cover.

5. China domestic made 8kw water cooling spindle(optional:8kw HSD Italy air cooling spindle).

6. Auto oiling,8 tools changer, imported servo motors and inverters, 12 cutters and 4 collects.







X working area

1300mm  2000mm

Y working area

2500mm  5500mm

Z working area

380mm   500mm

Table size

1300×2500mm

Traveling positioning accuracy

±0.05mm

Repositioning positioning accuracy

±0.05mm

Table surface

By suction

X Y Z structure

XY gear wheel, Z ball screw

Max. power consumption(without spindle)

2.8kw

Max. Rapid travel rate

50000mm/min

Max. working speed

25000mm/min

Spindle power motor

5.5kw

Spindle speed

0-24000r/min

Drive system

Servo

Working voltage

AC380V/60HZ

Command

G-code

X working area

1300mm  2000mm

Y working area

2500mm  5500mm

Z working area

380mm   500mm

Table size

1300×2500mm

Traveling positioning accuracy

±0.05mm

Repositioning positioning accuracy

±0.05mm

Table surface

By suction

X Y Z structure

XY gear wheel, Z ball screw

Max. power consumption(without spindle)

2.8kw

Max. Rapid travel rate

50000mm/min

Max. working speed

25000mm/min

Spindle power motor

5.5kw

Spindle speed

0-24000r/min

Drive system

Servo

Working voltage

AC380V/60HZ

Command

G-code
