China Auto Tool Changer wood machine (M25H)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
M25H
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
qiangdao
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
wooden case
Female. Yang Lele



Send a Message to this Supplier

Product Details Company Profile

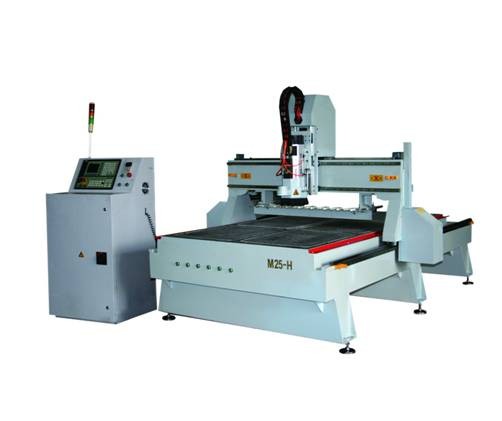

China Auto Tool Changer wood machine (M25H)



Features:



1. Adopt linear-square orbit, whole machine is welded with seamless steel structure, can bear heavy loading,

2. Ball screw for z axis and gear-wheel for x and y axis.

3.   TAIWAN LNC control system, Intelligent anti-transgress-process protection system. The function can prevent machine from crashing when the design zone is beyond the process zone.

4. Vacuum table and dust collector system with 6 zones separately control, auto tool changing system. No oil vacuum pump and dust cover.

5.   China domestic made 8kw water cooling spindle(optional: 8kw HSD Italy air cooling spindle)

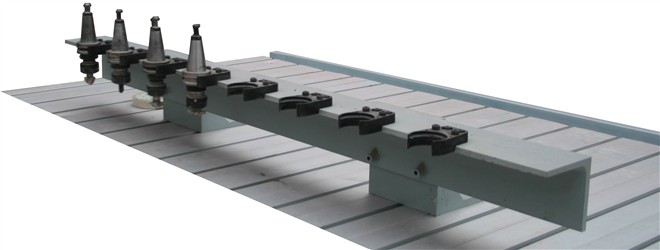

6. Auto oiling, 8 tools changer, imported servo motors and inverters, 12 cutters and 3 collets.





 technical specifications:



X, Y Working Area

1300X2500mm

Z Working Area

200mm

Table size

1480X3000mm

Max. Rapid Travel Speed

>25m/min

Table Surface

by suction

Operating System

DSP/100MHz

Interface

USB

Command Language

G-code*.u00*.mmg*.plt

Max. Power Consumption(Without spindle)

1840W

Working voltage

380V 50Hz

Spindle Power Motor

7.5KW

Spindle Speed

0-24000rpm/min

Drive System

servo
