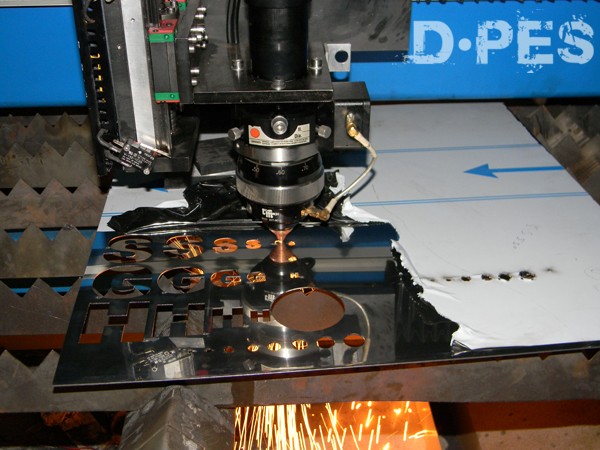

CX1530 China Industrial cnc Plasma Cutting Machine Servo motor
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
CX1530
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
qiangdao
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
wooden case
Female. Yang Lele



Send a Message to this Supplier

Product Details Company Profile



CX1530 China Industrial cnc Plasma Cutting Machine Servo motor



Feature:

  1. Welded lathe bed of thick profiled steel, more solid and stable.
  2.  Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath. The level difference of platform remains in 0-1.5mm..
  3.  Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
  4.  Panasonic Servo motor, Taiwan servo redactor and high-accurate rack transmission. Lower noise, stable and accurate coordinate movement
  5.  American Hypertherm power(optional Cut-Master power)together with high-sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy

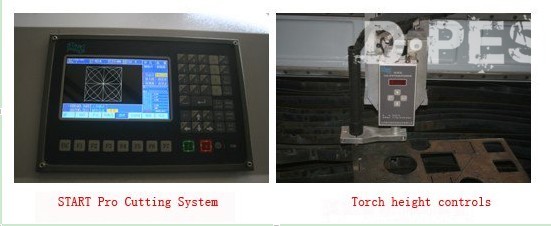

  6.  Microstep control system made in Beijing. Best choice for all kinds of different thickness material and heterotypic sheet cutting



Technical Specification:



Working material

Iron, aluminum, galvanized iron, armor plate, titanium

Working area

1500×3000 mm

Processing thickness

0.5-50mm(Optional)

Cutting speed

0-8000mm/min

Power

8.5KW-10.5KW

Input voltage

3 phrase 380V

Power frequency

50HZ

Current Plasma

15A-200A(Optional)

Interface

USB

Working Mode

untouched arc striking
