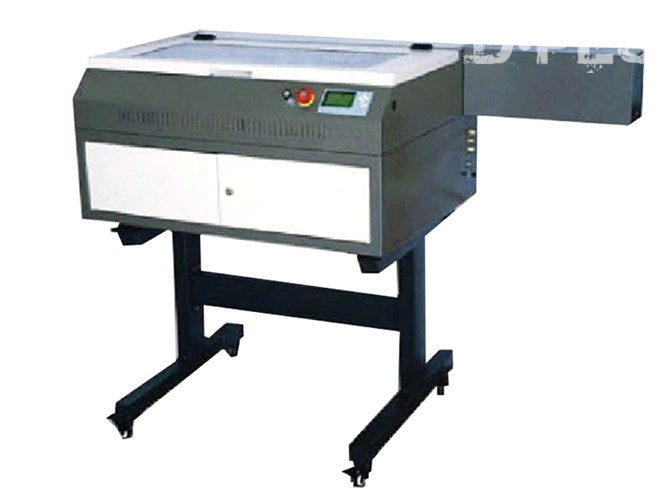

cx3040 laser engraving machine sealed CO2 laser tube
Feature:
Taking CO2 laser tube as thermal source, this machine is developed in combination with of electronic technology, mechanical technology and computer. The laser head doesn’t touch the object being engraved, so it won’t scratch the surface of the object and get small cutting slot. It has high precision and it is the ideal choice for various processing industries.
Applicable:
Materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.
|
Laser type
|
Sealed CO2 laser tube
|
|
Laser power
|
60W,80W,100W,130W,150W,200W (optional)
|
|
Engraving area
|
900×600mm,1200×900mm,1300×900mm,1400×900mm(optional)
|
|
Engraving speed
|
0-60,000mm/min
|
|
Resetting position accuracy
|
±0.05mm
|
|
Working voltage
|
AC110-220V ±10%.50-60HZ
|
|
Power
|
<1,000W
|
|
Operating temperature
|
0-45°C
|
|
Operating humidity
|
5-95%
|
|
Minimum shaping character
|
English 1×1mm
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, and AI
|
|
Driving system
|
Stepper
|
|
Cooling mode
|
Water-cooling and protection system
|
|
Auxiliary equipment
|
Exhaust-fan, air-exhaust pipe
|
|
Controlling software
|
DSP control system
|
|
Compatible software
|
Coreldraw auto CAD photoshop
|
