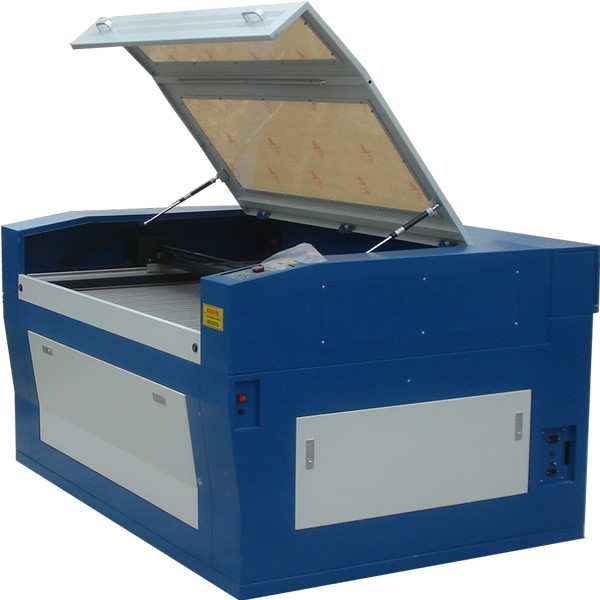

Laser Cutting Cloth Label Machine
Model YH-G1490 large area laser cutting machine adopts machine tool frame, ensuring the stability and smoothness when carving at a high speed, the crossbeam uses alloy aluminum of high hardness and processed by special mold, use high power motor, detachable structure, easy for transportation, front and back feeding and no limit for the length of the material. It is professionally customized for the users in large area cutting industries, garments,construction model, aviation and navigation model, wooden toy, 3-dimension sand table model processing, advertisement and decoration, printing and packing industries.
ACCESSORIES:
high-power smoke-exhausted system, high-powe water cooling system, control software, air pump, water pump, CCD.
Technical Features:
- Professional design ideas, customized for the users in different industries, elegant appearance and practical. Professional moving control design, adopt advance three-phase stepping motor and good transmission system, high speed and precision.
- Complete function, safe and stable, exclusive no water warning and automatic protection system, to protect the working life of the laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
- Electronic control lift platform, easy to feed front and back, easy and flexible to operate, can engrave materials with different heights. Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.
- Red light positioning system realizes the high positioning without laser.
- Auxiliary rotary device (Optional): process the cylinder object such as cup, brush pot, musical instrument and breakthrough the engraving limit of 2-dimension.
Technical Parameters:
- Laser power: 80W/110W/130W/60W+80W/80W+80W (Optional)
- Size of platform: 1825*1340*1030mm
- Engraving area: 1340x800mm
- Cutting area: 1380x800mm
- Appearance size: 1825x1340x1030mm
- Engraving speed: 0-1000mm/s
- Cutting speed: ≤0-300mm/s
- Cutting thickness: ≤30mm
- Positioning precision: more or less 0.01mm
- Support file format: AI, BMP, PLT, DXF, DST
- Minimum shaping characters: English letter height:2mm
- Power of machine: ≤1200W
- Electric lift platform Adjustable height:300mm
- Auxiliary rotary device: Optional
- Structure of machine: Integrated
- Power supply: 220V±5/50Hz~60Hz
