120*90cm Laser engraving cutting machine for non-metal
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1290
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
14
FOB Price:
USD 4000.00-5000.00 /Piece
Shippment Port:
TIANJIN or SHANGHAI
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
25 Piece/Pieces
Delivery Time:
Month
Packaging:
plywood package(free fumigating)
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

Model

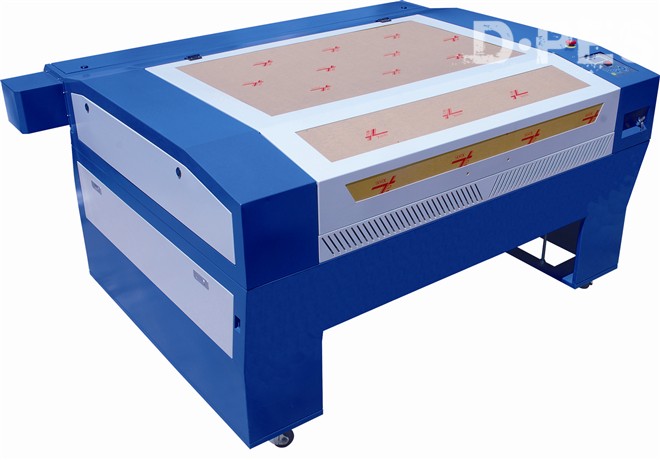

YH-G1290 Laser Engraving and Cutting Machine

Laser type

Sealed CO2 glass laser tube

Laser power

60W/80W

Engraving area

1200×900mm

Cutting area

1200×900mm

Appearance size

1740×1490×940mm

Engraving speed

0~350mm/s

Cutting speed

0~300mm/s

Cutting thickness

0~20mm

Positioning precision

±0.01mm

Characters

1.0mm English letter

Format support

AI,BMP,PLT,DXF,DST etc

Power supply

AC220V±5%/50~60HZ

l This is our newest product, we product this type laser machine to save money and material for you.

l Professional design ideal, customized for the users in different industries, elegant appearance and practical.

l Professional moving control design, adopt step motor of high power and high-quality transmission system, high speed and high precision.

l Complete function, safe and stable, unique no water warning and automatic protection system, protect the working life of the laser tube effectively.

l The power control system has unique automatic protection equipment to ensure the stability and safety of the machine to the greatest degree.

l It supports various file formats PLT, BMP (1bit), DXF, AI etc. And it can carve various graphs and words.

l There are 6 liner guide rail in the balance moving system, step motor with lower speed components, it keep the machine work with high precision.

l (Optional) Auxiliary rotary device: Process the cylinder object and break through the engraving limit of 2-dimenision.

Applicable materials

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.

Applicable industries

1. Packing printing: paper carton, knitting bag, handbag, rubber board for printing

2. Advertisement: acrylic cutting, label making, double-colored board engraving..

3. Art and gift: wood, bamboo, image, ornament, prizes engraving.

4. Leather and garment: leather, leatheroid, garment embroidery and sampling

5. Others: sample, marking, model-making, surface drawing, decoration etc.

Service Supported

1.One year guarantee for the whole set of machines, not including normal replacement of wearing parts.

2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.

3. User-friendly English manual and CD for machine using and maintaining.

4. Free lifetime upgrading of self-developed English software.
