1600*1600mm dual heads laser cutting machine for fabric
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
yh-g1616
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
14
FOB Price:
USD 5000.00-7500.00 /
Shippment Port:
TIANJIN or SHANGHAI
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
20 Piece/Pieces
Delivery Time:
Month
Packaging:
plywood carton(free fumigating)
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

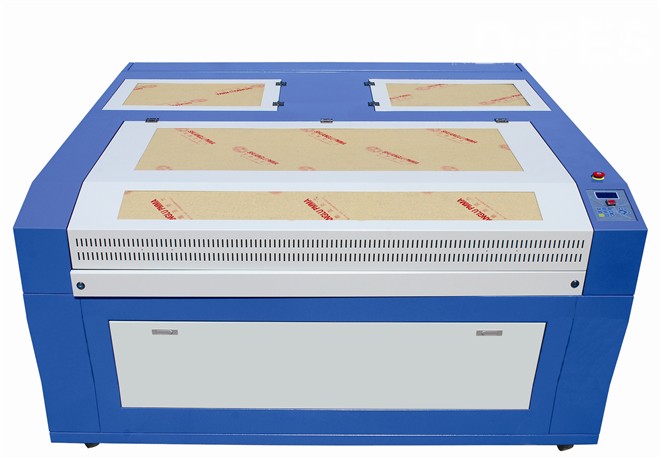

Laser engraving machine YH-G1616 is a big size laser machine.

Parameters

Model

YH-G1616 Laser Engraving and Cutting Machine

Laser type

Sealed CO2 glass laser tube

Laser power

60W/80W/100W/120W/150W/60+60W/60W+80W/80+80W

Engraving area

1556×1556mm

Cutting area

1600×1556mm

Appearance size

2090×2015×1035mm

Engraving speed

0~1000mm/s

Cutting speed

0~300mm/s

Cutting thickness

0~30mm

Positioning precision

±0.01mm

Characters

2.5mm English letter

Format support

AI,BMP,PLT,DXF,DST etc

Power supply

AC220V±5%/50~60HZ

Power of machine

≤1250W

Features

1.It is professional designed with big worktable and high power.

2.It can be equipped two heads to improve efficiency, and the max power is 160W.

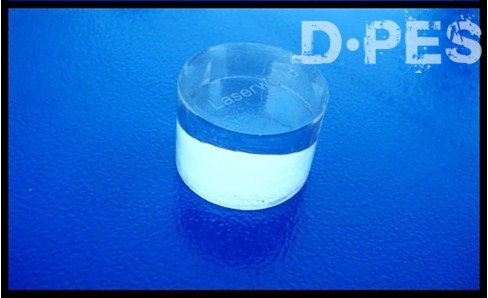

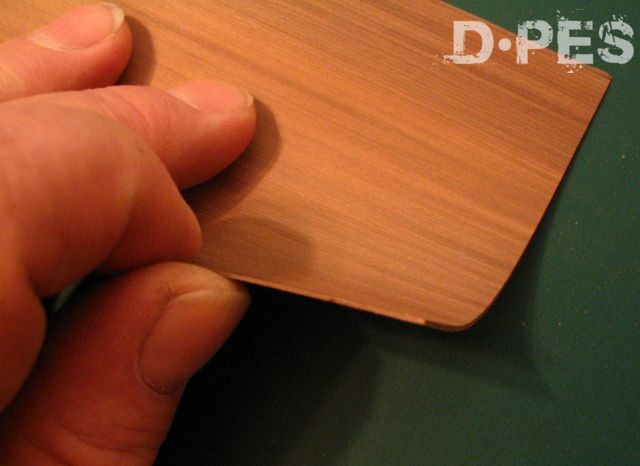

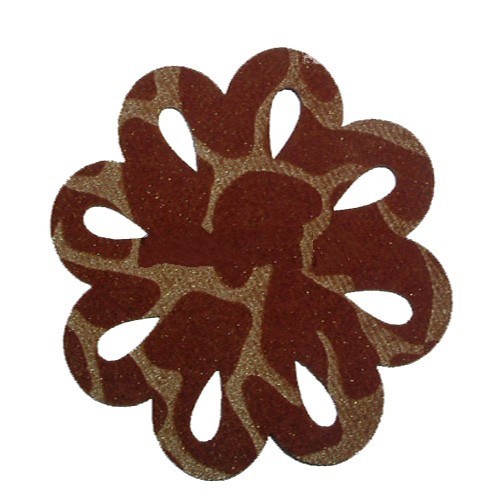

3.It can be used to engraving and cutting almost all of the non-metal materials like acrylic, wood, bamboo, paper, leather, cloth, double-colored board, marble jade, rubber, glass, crystal, plastic and so on.

4. It is equipped imported step motor, lifting platform, red positioning system, waterless alarm system and automatic air exhausting system.

5. It is the biggest worktable laser engraving and cutting machine.

Applicable materials:

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.

Applicable industries:

1. Packing printing: paper carton, knitting bag, handbag, rubber board for printing

2. Advertisement: acrylic cutting, label making, double-colored board engraving..

3. Art and gift: wood, bamboo, image, ornament, prizes engraving.

4. Leather and garment: leather, leatheroid, garment embroidery and sampling

5. Others: sample, marking, model-making, surface drawing, decoration etc.

Service Supported

1.One year guarantee for the whole set of machines, not including normal replacement of wearing parts.

224 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.

3User-friendly English manual and CD for machine using and maintaining.

4Free lifetime upgrading of self-developed English software.
