This machine is designed for engraving and cutting non-metal like acrylic, wood, ribber, leather, paper,plastic, glass etc..

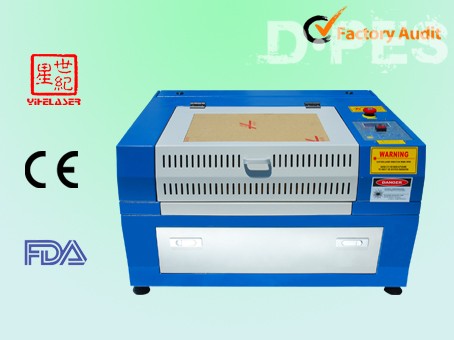

YH-G5030 Laptop engraving and cutting machine
1. YH-G5030 is an economical laser engraving machine adopted high precision.
2. It's produced with small volume and light weight, easy for carrying, saving work space.
3. Designed for small gifts and crafts, and used for engraving stamps with professionally clamp.
4. Use the rotary device to engrave the cylinder object and break two-dimension limit.
5. Red point positioner can show the position of laser.
6. Lift platform can move up and down (30cm) which can engrave or cut the thicker material.
7. LCD control board can show or adjust the power and speed.
8. Our software can support AutoCad and CorelDraw output directly.
9. It is our minimum machine designed with the feature of high speed, high precision and high stability.
Technical Parameters:
|
Model
|
YH-G5030
|
|
Laser type
|
Sealed CO2 laser tube
|
|
Laser power
|
40W
|
|
Engraving area
|
430*300mm(16.93"*11.82")
|
|
Cutting area
|
447*300mm(17.60"*11.82")
|
|
Appearance size
|
800*630*420mm(31.50"*24.81"*16.54")
|
|
Engraving speed
|
0-800mm/s
|
|
Cutting speed
|
0-200mm/s
|
|
Cutting thickness
|
0-6mm
|
|
Characters
|
1.0mm English letter, 1.5mm Chinese character
|
|
Positioning precision
|
±0.01mm
|
|
Electric lift platform
|
Adjustable height of 130mm
|
|
Format support
|
AI,BMP,PLT,DXF,DST etc
|
|
Power supply
|
AC220V±5% / 50HZ-60HZ
|
Accessories:
Fan, water pump, power wire, air pump, air blowpipe, USB wire, Softdog, CD, instruction book, debugging tool, etc
Appliicable materials
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable industries
- Packing printing: paper carton, knitting bag, handbag, rubber board for printing.
- Advertisement: acrylic cutting, label making, double-colored board engraving.
- Art and gift: wood, bamboo, image, ornament, prize’s engraving.
- Leather and garment: leather, leatheroid, garment embroidery and sampling
- Others: sample, marking, model-making, surface drawing, decoration etc
Warranty: one year.
