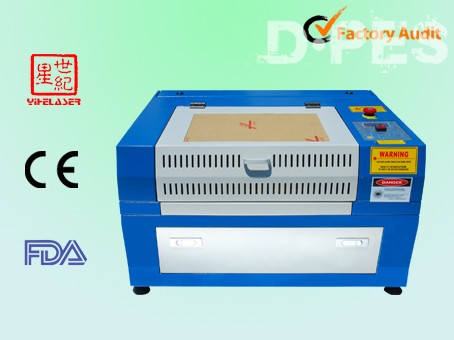

YH-G5030 laser engraver with high precision
A Versatile Machine mainly designed for arts & crafts and gift industry.
All-powerful laser machine is for engraving, cutting, net point scanning and cylinder processing.
Enough space to process the material reaches 12cm height.
Flat platform, honeycomb platform and knife-strip platform chosen at will.
Manual platform, red light positioning, LED light.
Super fine engraving technology which can engrave 1.5mm Chinese character and 1mm
English letter and net point picture can reach the best effect at the same time of improving process effect.
New design moving platform make moving more easily and higher precision.
Various schemes can be chosen in according to the requirement of techniques and service level.
Technical Parameters:
|
Model
|
YH-G5030
|
|
Laser type
|
Sealed CO2 laser tube
|
|
Laser power
|
40W/50W
|
|
Engraving area
|
430*300mm(16.93"*11.82")
|
|
Cutting area
|
447*300mm(17.60"*11.82")
|
|
Appearance size
|
800*630*420mm(31.50"*24.81"*16.54")
|
|
Engraving speed
|
0-1200mm/s
|
|
Cutting speed
|
0-300mm/s
|
|
Cutting thickness
|
0-6mm
|
|
Characters
|
1.0mm English letter
|
|
Positioning precision
|
±0.01mm
|
|
Electric lift platform
|
Adjustable height of 130mm
|
|
Format support
|
AI,BMP,PLT,DXF,DST etc
|
|
Power supply
|
AC220V±5% / 50HZ-60HZ
|
| Power of machine |
≤500W |
Applicable materials:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable industries:
- Packing printing: paper carton, knitting bag, handbag, rubber board for printing.
- Advertisement: acrylic cutting, label making, double-colored board engraving.
- Art and gift: wood, bamboo, image, ornament, prizes engraving.
- Leather and garment: leather, leatheroid, garment embroidery and sampling
- Others: sample, marking, model-making, surface drawing, decoration etc.
