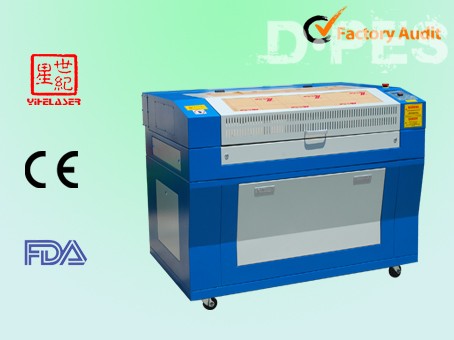

A1 size Laser engraving machine YH-G6090 600x900mm [CE&FDA]
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G9060
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1.00-5000.00 /Set
Shippment Port:
SHANGHAI/QINGDAO/TINJIN
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
PLYWOOD CARTON
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

YH-G9060C engraving and cutting machine is customised for non-metal materials.

Technical  parameters:



Model YH-G9060C
Laser type Sealed CO2 laser tube
Laser power  60W/80W
Engraving area  910*545mm(35.83''*21.46'')
Cutting area  950*545mm(37.41''*21.46'')
Appearance size  1430*1100*990mm
Engraving speed  0~1000mm/s
Cutting speed  0~300mm/s
Cutting thickness  0-20mm
Characters  1.5mm English letter
Positioning precision  ±0.01mm
Electric lift platform  Adjustable height of 350mm
Format support  AI,BMP,PLT,DXF,DST etc
Power supply  AC220V±5%/50HZ-60HZ
Power of machine  ≤1000W



Product features:

  • Professional design ideas, customized for the users in different industries , elegant appearance and practical .
  • Professional moving control design , adopt advance three-phase stepping motor and good transmission system , high speed and precision .
  • Complete function, safe and stable, exclusive no water warning and automatic protection system, to protect the working life of the laser tube effectively .The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
  • Electronic control lift platform, easy to feed front and back, easy and flexible to operate, can engrave materials with different heights.
  • Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.
  • Red light positioning system realizes the high positioning without laser.
  • (Optional)Auxiliary rotary device: process the cylinder object such as cup, brush pot, musical instrument and breakthrough the engraving limit of 2-dimension.

Applicable materials:



Wood , ware , paper , marble , cloth , epoxy resin , density board , double-colored board , leather , plastic , acrylic ,  rubber , ceramic tile , crystal , onyx , bamboo ware and other non-metal materials .



Applicable industries:

  • Packing printing:paper carton,knitting bag,handbag,rubber board for printing.
  • Advertisement: acrylic cutting,label making,double-colored board engraving.
  • Art and gift: wood,bamboo,image,aonament,prize's engraving.
  • Leather and garment: leather,leatheroid,garment embroidery and sample.
  • Others: sample,marking,model-makin,surface drawing,decoration etc.
