You may process big diameter and long cylindrical stone with heavy duty, you may process large foam, and you may prcess other large size mold etc. This cnc router is the perfect choice for you.

1. This cnc router's rotary device is with double chuck at 400mm diameter, 3000mm length. Whole rotary device is with steel welded, motor we adopt big power servo motor. When you process heavy material, such as stone, there are two pieces of material support device, which will be placed under the material for supporting. This rotary device configuration could meet your demand of processing heavy duty cylindrical material totally.

2. CNC router is with 500mm Z axis travelling size, could procss large size mold, such as wood, foam, plastic material mold.

3. Coolant tray and mist sprayer on cnc router. This device is suitable for metal, stone processing. Coolant tray support the waste cooling water or oil collecting and removing, mist sprayer could cooldown the temprature of cutter and last the cutter life.

4. 7KW HSD spindle, such big power spindle is good at of engraving, cutting and drilling on hard material.

5. Servo system is with closed loop, ballscrew on x axis, both ensure the high precision of cnc router.

6. Control system is with windows flatform, support SD/CF card.

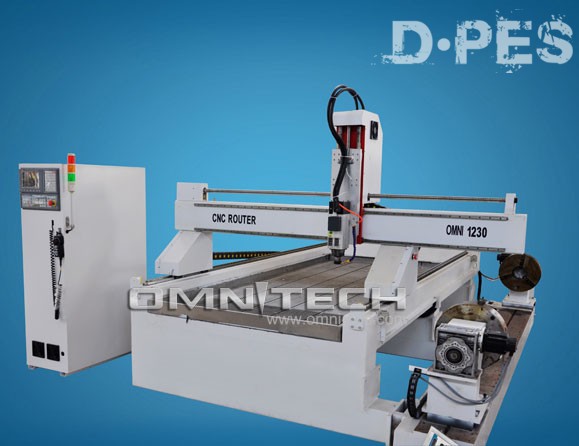

CNC Router OR1230 Parameters:
X,Y-Axis Travel: 4'*10'
Z-Axis Travel: 20"
Spindle Power: 9hp air-cooling spindle, 24000rpm

Remotion: +/- 0.01mm
Working Speed: 30m/min
Max. Rapid Travel Speed: 50m/min
Drive System X, Y and Z axis: Ballscrew on X and Z, Rack& Pinion on Y, Linear guide on three axis.

Motor: Servo

Standard Work Surface: Vacuum table combined with T slot table

Working Voltage : 220V, 50Hz/3800V,60Hz, 3phase
Command Language G Code, NC, M Code
Engraving Tools: 3.175mm, 4mm, 6mm, 12.7mm
Collet ER32

Rotary Device: 16'' *10'
Controller
Operating System : Syntec
Interface: SD/CF Card
