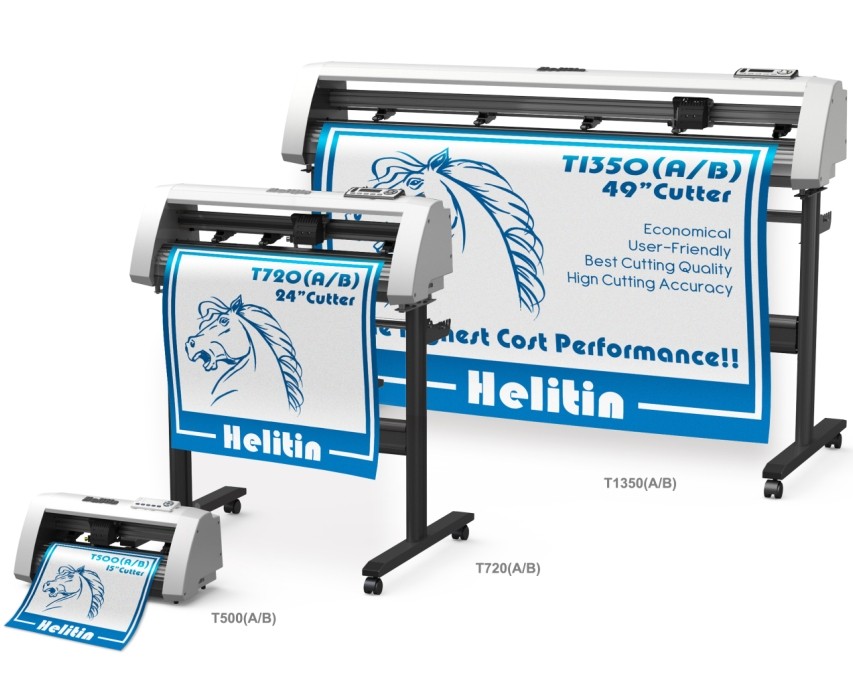

Helitin plotter sticker cutting machine owns the characteristics of the followings:
1.Advanced paper transferring roller, assured 5 meters tracking and wear resistance;
2.Unique head design, accurate cutting and stable moving, realized accurate, smooth,and high-speed cutting;
3.One lever in behind control all of the pinch roller up and down at the same time,easy to operate;
4.9 silica gel buttons, easy to operate, durable;
5.Blade force and speed can be adjusted without stopping the machine; blade holder adjustable;
6.High speed calculation microprocessor, stable running, low noise, and high precision;
7.Streamline design, strong aluminum alloy body with especial treatment, never fade out;
8.Serial port/USB port, USB port support to plug in and out when the power on;
9.Chinese and English operation interface;
10. Liquid crystal backlight display with high definition characters is adopted to different working environment;
11.Be applied to WIN2000/WINDOW/XP/WIN7/VISTA operation system;
12. Advanced paper-transfer roller provides a high-precision and wear-resistant function.
13.Contour cutting automatically
Appearance
|
Desktop
|
Configuration
|
Grit-rolling
|
Max cutting width
|
|
380mm
|
|
Max feeding width
|
|
500mm
|
|
Thickness of cutting media
|
0.5mm (reflective film); 0.25mm(vinyl paper)
|
Drive system
|
Digital stepper motor
|
Cutting force
|
510 (vinyl sticker)
|
Max cutting speed
|
Servo motor: 960 mm /s
|
Mechanical precision
|
0.05 mm or 0.1% tolerance
|
Minimum character size
|
Approximately 3-5 mm for alphanumeric characters
(varies depending on the medium, font, etc.)
|
Offset value
|
0~1.0 mm
|
Mechanical resolution
|
0.0125mm
|
Repeatability precision
|
0.1mm
|
Compatible cutter type
|
Supersteel cutter blades
|
Buffer capacity
|
2 MB
|
Interfaces
|
Serial RS-232C/ USB 2.0 High Speed
|
Command modes
|
HP-GL, HP-GL/2
|
Original setting
|
Yes
|
Linear mode
|
Yes
|
Paper feeding tube
|
Optional
|
Curve & arc smooth cutting
|
Yes
|
Cutting Test
|
Yes
|
Compatible software
|
Art cut, Corel draw, Adobe illustrator, Master, Flexi 10, WINPC sign, Signcut(Optional)
|
Standard set(free)
|
3 cutting blades,plotting pen,screws,connectivity cables
|
No. of pens mountable(free)
|
1 pen
|
Cog belt (free)
|
3pcs
|
Control panel
|
One liquid crystal display, 9 silica key, 3 lights, Chinese and English operation interface
|
Carton size
(L*W*H)
|
|
Approx. 800*430*430mm
|
|
Gross weight
|
|
Approx. 22KG
|
|
Package
|
EPE Foam+ standard export carton/wooden crate
|
Rated power supply
|
110V-220V, 50-60Hz / Auto Switch
|
Rated Power consumption
|
Max 110W
|
Noise at Work
|
≤75 DB
|
Environmental Humidity
|
30% ~ 70% relative humidity
|
Working Temperature
|
0°C~55°C/32°F~131°F
|
The main advantage of our plotter is high cutting&feeding accuracy:
No shifting of cutting media within 5 mts, the minimum character of cutting can be 2-3mm.
You can check 5m cutting precision on Youtube weblink as below:
http://www.youtube.com/watch?v=aY8LeGncslA
http://www.youtube.com/watch?v=qZqCXqimlUY
It shows the cutting of 5*0.005 meters rectangular, closed from start point to terminal point, which shows the high cutting precision.
Contour cutting Youtube weblink:
https://www.youtube.com/watch?v=aasrUAbF4Fs&feature=plcp
Your friendly inquiry will be kindly appreciated!
