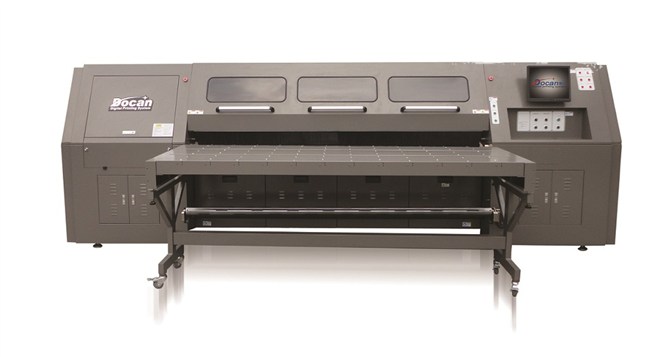

Hybrid UV printer UV2510 both for rigid and roll to roll material

Home >> Products >> Digital Printers >> Hybrid(Roll to Roll & Flatbed) Printers >> Hybrid UV printer UV2510 both for rigid and roll to roll material

Product Details:

Select Payment and Shipping Terms:

Show Buyers your Ability to Supply:

Miss. Elva Lee

Send a Message to this Supplier

Supplier Details

[Shanghai,China (Mainland)]

Business Type:

Manufacturer

Product Details Company Profile

Printing method	Continuous ink supply/capacity 1000ml
Characteristics of ink	UV curing ink
Print head control	Software adjust the temperature and voltage of print head
Material handing	Roll to roll various sheets
Dry system	UV lamp
Rip software	Photoprint10 Version(Windows2000,Windows XP Pro SP2)
Color control	In accordance with ICC standard, with the functions of curve and density adjustment
File format	TIFF, JPEG, Postscript3, EPS, PDF, etc
Power supply	50Hz/60Hz, 200V-240V, Maximum30Amp
Working environment	Optimum temperature18-30C, relative humidity 40-70%
Warranty	One year
Mode	UV2510
Print head	Konica Minolta print head (KM1024-14pl/ 42pl )
Quantities of print head	5/6/7/8/10/12pcs
Color	4 color( C M Y K ), or 6 color (C M Y K Lc Lm) , white optional.
Resolution	360dpi360dpi 360dpi720dpi
	720dpi360dpi 720dpi720dpi
	720dpi1440dpi 1440dpi1440dpi
Printing speed	In draft mode up than 60 sq.m/hr ( 8 heads)
	In standard mode up than 38 sq.m/hr ( 8 heads)
	In high resolution mode up than 24 sq.m/hr ( 8 heads)
Width of media	250cm
Print width	250cm
Max thickness of media	60mm
Media Type	Corrugated board ,bubble board, foaming board, PVC, ceramic tile, glass, acrylic, wood, metal, paper, flex banner, mesh fabric, adhesive vinyl, wall paper, leather, etc.
Outdoor durability	3 years(use DOCAN ink)
Size of Equipment	4.89 2.891.81m
Weight of Equipment	3125kg
