konica head solvent printer :

Improved function deployment
1.Patent technology to ensure 100% achievement in large printings combination;
2.The whole printer takes eco solvent printer's mechanical precision and technology

as production standard;
3.Printhead heating system, suitable for low temperature working environment in winter;
4.Adopt 4 or 8 pcs KM1024 printheads, with speed 80 m2/h  or 160 m2/h;
5.Intelligent infrared heating system to speed up picture drying (optional).

C8 hardware functions and deployments
1.Advanced servo motor for feeding&collecting system;
2.Three feeding modes for different operation conditions:
inserted type, deposited feeding type with two rollers, deposited feeding
type by dragging media with three rollers;
3.Integral machine body with higher accuracy of feeding and collecting;
4.Unique printhead protection stack;
5.Secondary ink tank and ink circuit heating system;
6.Three-stage adjustable temperature heating for media;
7.Reserved suction outlet for automatic printhead cleaning;
8.LED lights the printing bed for better observing printing quality and color bar;

Overall improvement of printing quality
Top technology, new innovation--- Konica Minolta KM1024 printhead

1. KM1024 printheads has 1024 nozzles which equal to two  KM512 printheads and

eight 128 printheads,  higher printing speed with less printheads;
2.With less printheads, physical position can be easily and accurately calibrated,

which can avoid the deviation in physical calibration compared with more printheads,

then the printing quality can be entirely enhanced;
3.KM1024 printhead can improve the printing quality obviously when prints on back-lit

banner, pvc vinyl and some special colors, which can meet the requirement of high-end clients.

The whole printer is elaborately manufactured according to the mechanical precision
     standard of eco solvent printer.

The precision levels above are five times higher than normal standards in this industry; so effectively
improved the printing quality of the picture.

Secondary ink tank with ink circuit heating system

During winter in low temperature, machine also can work as usual with secondary
ink tank heater and printing bed heater on, so as to save your
electricity cost without turning on the air conditioner in large workspace.

 Three heating sections

LED lights

Led lights the printing bed for better observing printing quality and color bar.

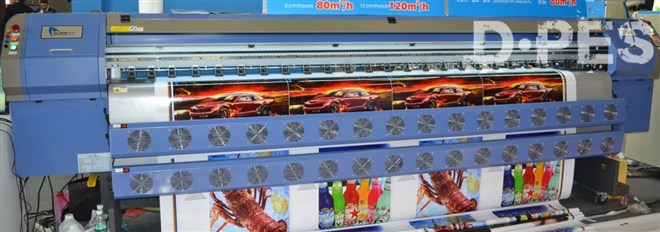

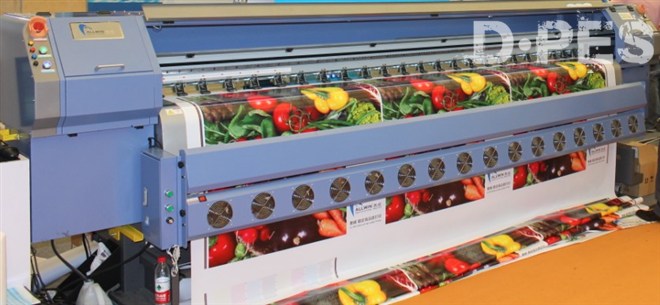

Infrared heating system

1. It could set 1.8m, 2.5m and 3.2m heating width freely;

2. Adjustable heating temperature for media surface from 35 to 80°C;

3. Adjustable drying fan power level;

4. Print in 120m2/h, the image will dry simultaneously;

5. External infrared heating system to replace the platform heating system;

6.Through infrared heating, it will get stronger colour adhesion to get longer weather resistance.

7.Heater automatically stops when printing pauses, heater automatically works when printing starts.

Note: this system works with inserted feeding and automatic collecting system, it can achieve unattended printing.

Exclusive self-innovated length correction system in China can easily achieve
    large printings accurate combination

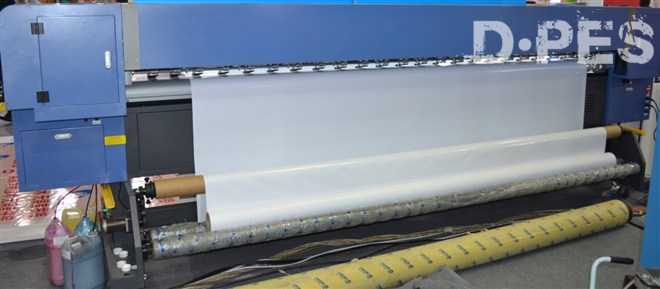

 Photos:
