Small type Laser Engraving/Cutting Machine-JQ6040
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JQ6040
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1000.00-5000.00 /Set
Shippment Port:
Qingdao, Ningbo, Shanghai
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets
Delivery Time:
Month
Packaging:
standard wood container with Reinforcement device
Ms. Hong Chanel



Send a Message to this Supplier

Product Details Company Profile

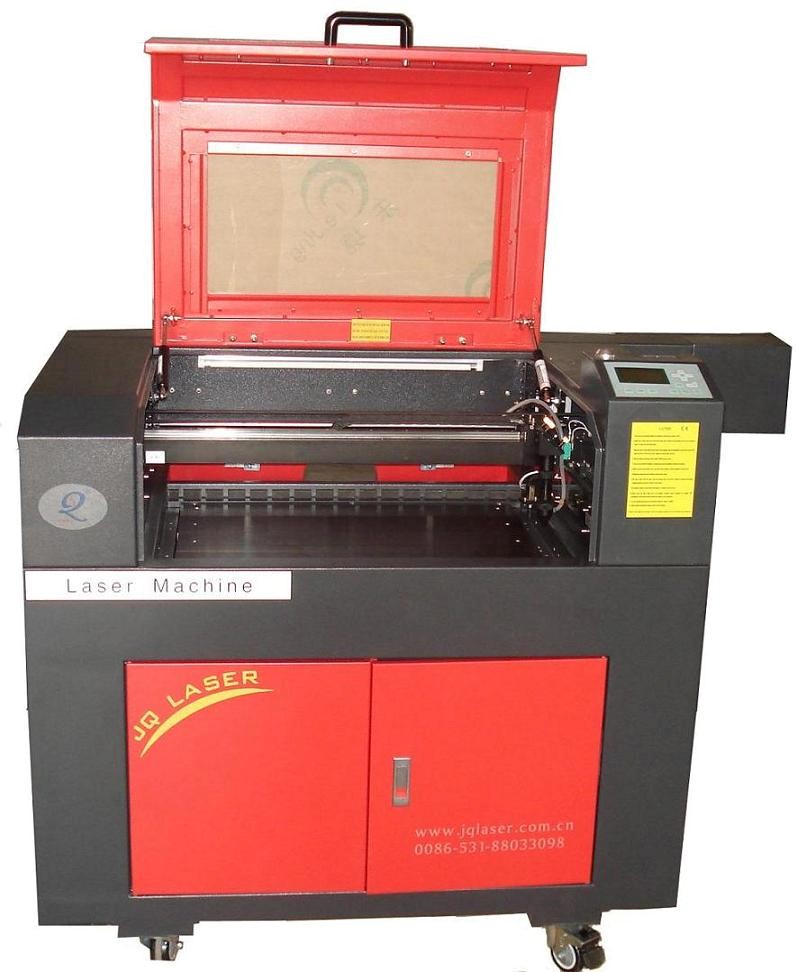

Small working bed Work from home Laser Engraving/Cutting Machine-JQ6040

Work from home Laser Engraving/Cutting Machine
1,60*40cm
2,small size laser engraving/cutting
3,USB offline & 40w/60w laser

JQ6040 Laser engraving and cutting machine is a simple and useful laser processing device that JQ Laser has specially been developed for the needs of advertising, gift packaging and other relevant industries. The equipment inherits the characteristics of both the former high-speed laser engraving machine and high-speed laser cutting amchine. The device is equipped with the imported dual rails for more stable operation. Its drawer is benefical for the collelction and disposal of waste. The machine can install an up-down platform to make the processing more cvonvenient.

1.Configure higher power laser tube.
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision. Imported reflector and focus lens, not easy to broken and wear resistant.

Laser Engraving Machine Technical Specifications

Item  /  Model

JQ6040

Cutting area

600x 400mm

Laser power

40w/60w

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

AC 110 - 220V ± 10%, 50 - 60Hz

Operating temperature

0 - 45°C

Operating humidity

5 - 95%

Min. shaping character

English 1.0mm x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

Tajima,CorelDraw, PhotoShop, AutoCAD

Driving system

Stepper

Cooling mode

Water-cooling and protection system

Equipment Dimensions

720×520×480mm

Net Weight

55kg

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens

Applicable materials:

Marble,granite, jeans ,fabric ,acrylic ,MDF, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials,etc.

Applicable industries:

advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry,etc.
