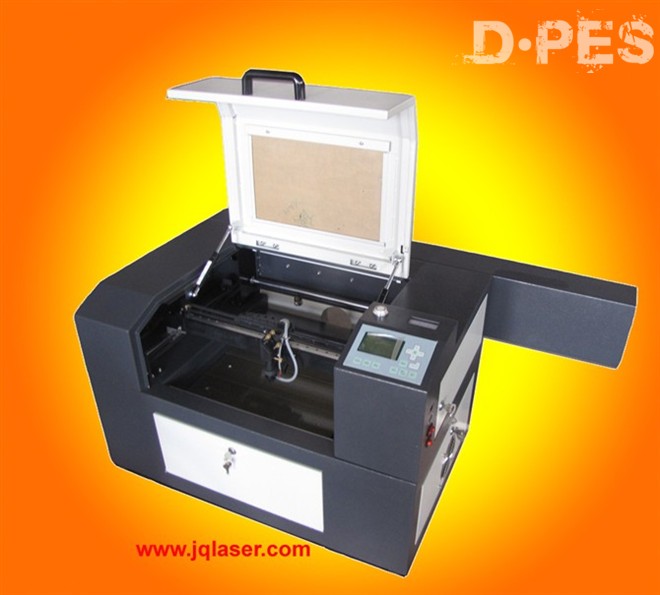

Europe Quality with Competitive China Price-Small Laser Engraving/Etching Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JQ4030
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1000.00-5000.00 /Set
Shippment Port:
Qingdao, Ningbo, Shanghai
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets
Delivery Time:
Month
Packaging:
standard export plywood container
Ms. Hong Chanel



Send a Message to this Supplier

Product Details Company Profile

Europe Quality with Competitive China Price-Small Laser Engraving/Etching Machine



we guarantee the machine for one year and the customers all over the world has a good remark on our after-sale service





1CE&ISO&FDA certification

2Perfect after-sales service

3our machine is special produce for Europe market

 4.High precision with reasonable price

 5.Human design strong features and easy to use

mini engraving laser with CE
suitable working area and lifting table
both nonmetal cutting and engraving
work without pc



1.Configure higher power laser tube.
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.

Techincal Parameter

Item  /  Model

JQ-4030

Cutting area

400 x 300mm

Laser power

40w/60w

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

220V/50HZ , 110V/60HZ

Operating temperature

0 - 45°C

Operating humidity

5 - 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA,CorelDraw, PhotoShop, AutoCAD

Driving system

2 phases stepper motor

Cooling mode

Water-cooling and protection system

Equipment Dimensions

1450x1100x1070mm

Net Weight:

160kg

Shipping Dimensions

1500 x 1110 x 1300mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens








Optional configuration

1. Panasonic servo motor (enhance the accuracy of the processing

2. Rotary device (applicable to round material processing)



Applicable to Process Material As Following

Acrylic, PVC board, woody products, bamboo ware, crystal, rubber, other plastic products, double plate, PCB board, paper, fur & leather, tiles, etc.



Typical Application

Sign plates, acrylic products, samples, costume design draft, printing, art ware, construction moulds, aero plan/navigation models, art-crafts, electric& electronic industries, etc.
