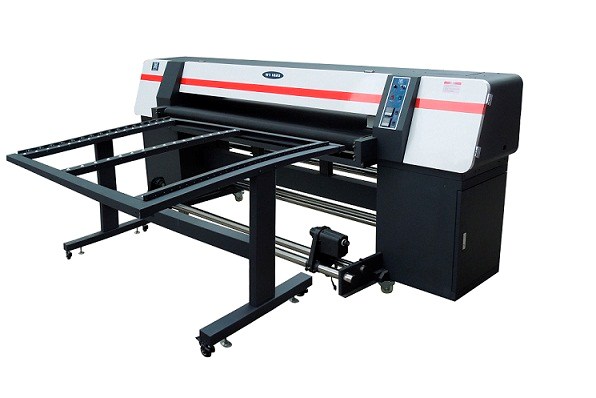

UV Multifunctional Printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
M-1820
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
9000.00-13000.00 /
Shippment Port:
Shanghai
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
100
Delivery Time:
Packaging:
crate package
Ms. Dai Mona



Send a Message to this Supplier

Product Details Company Profile

Features:

New innovation
CNC milled aluminum brick print head mounting base - Never distorted
User friendly print head physical position and angle adjusting
New CNC milled aluminum capping block seal print head tightly

Multifunction
The best new improved control boards to protect print heads
Front and Mid. Heating system with PID temperature control unit
Taking up / Feeding system to maintain long feeding
New developed sub tank system to ensure good ink supply

Easy control
Rip maintop5.3 User friendly control console software
USB2.0 high speed interface for large volume data transferring

Model

WT-M1820     WT-M2650     WT-M3208

Printing Method

Piezo Ink-jet Method (DX5 or DX7 Print Head)

Printing Width

1800mm ,2500mm,3200mm

Conditions for Usable Media

Type

Roll to roll material or board(Banner,KT board,glass, Steel plate, marble,wooden plate ,leather,wallpaper, Non-woven fabrics etc )

Max Thickness

3.0CM

Material Weight

No limited

Ink Cartridge

Type

eco-solvent Ink+coating /UV ink

Capacity

1000ml

Color

 4color(C M Y K)

Capacity

Continuous Ink Supply Cartridge

Color Gamut Performance

1670 Million Color

Printing Resolution(one head)

2Pass   720X720dpi   25-30sqm/h

3Pass   720X1080dpi   18-20 sqm/h

4Pass   720X1440dpi   13-15 sqm/h

6Pass   720X2160dpi   8-12 sqm/h

8Pass   720X2880dpi   4-6 sqm/h

Media Control

Automatic Feeding System

Media Sensors

Two sides: front and back

Height of Printing Heads

Two types optional :1.5mm/2.5mm

Printing Heads Cleaning

Automatic cleaning and manual cleaning

Interface

USB2.0

Software

1

Maintop or ultraprint

2

Photoprint(option)

Power-saving Function

Automatic Sleep Feature

Power consumption

Under 1500VA
