Single-side Full-auto Heat-assist Cold laminator laminating machine / laminator machine (MF1600-M1)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF 1600-M1
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai/Guanghzhou
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
5000 Set/Sets
Delivery Time:
Year
Packaging:
Packed in wooden case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

Description

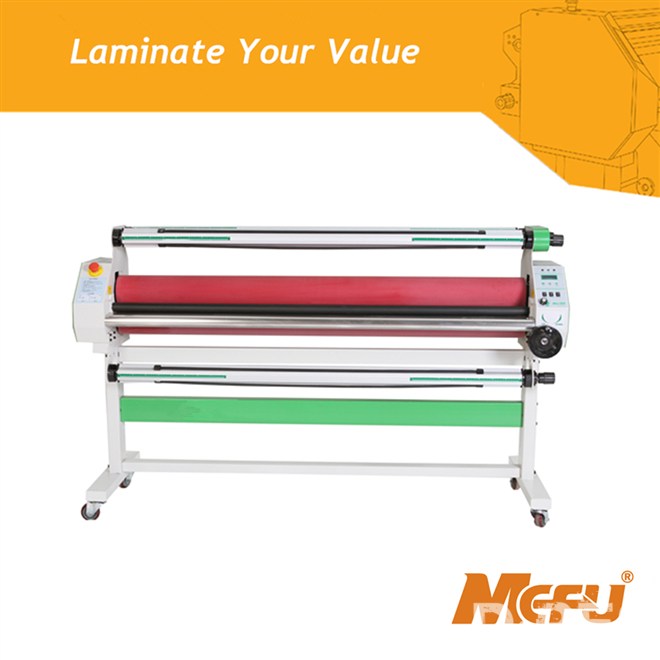

MF1600-M1 is the newest upgrade model of Lowheating Cold Laminator,which advanced ISO quality rubber roller and antitilt system to make it more accurate and faster during lamination. MF1600-M1 is a 1.52m/60in full auto lowheat cold laminator designed as an inexpensive option for post printers.Low heating can absolutely avoid air bubbles and snow points for cold weather. Its simple design makes it extremely easy to use and provides quality laminating results.

The numerous features included with the 60in wide format MF1600F1+ hot and cold laminator make it so easy to use finishing becomes  one person.



Parameter

Brand

Mefu

Max lamination width

1520mm/60in

Speed

0m/s-6m/min

Laminating type

Cold(low heating)

Heating method

Heated top roller

Diameter of upper roller

130mm

Max thickness

23mm

Warm up time

5-10 min

Temp range

40℃-50℃

Max temp

60℃

Fixed Volt

AC220V-240v   50HZ-60HZ

Fixed power

1400W

Fixed current

9A

Motor power

60W

Reverse function

Yes

Size

680×1860×1140mm

N.W.

130KG

Shipping weight

180KG



Features

Low-heat Cold lamination

Free of air bubbles and snow points

Whole volume prints will not go tilt

Best lamination quality with high speed

Multiple uses



Configuration

Stainless steel feeding table

Adjustable ISO quality 60w motor

130mm upper rubber roller

Auto-take-up system

Anti-tilt and anti-fold device (Origin)

Pressure and height adjust hand wheel

Infrared temperature control device

Multi-function footswitch
