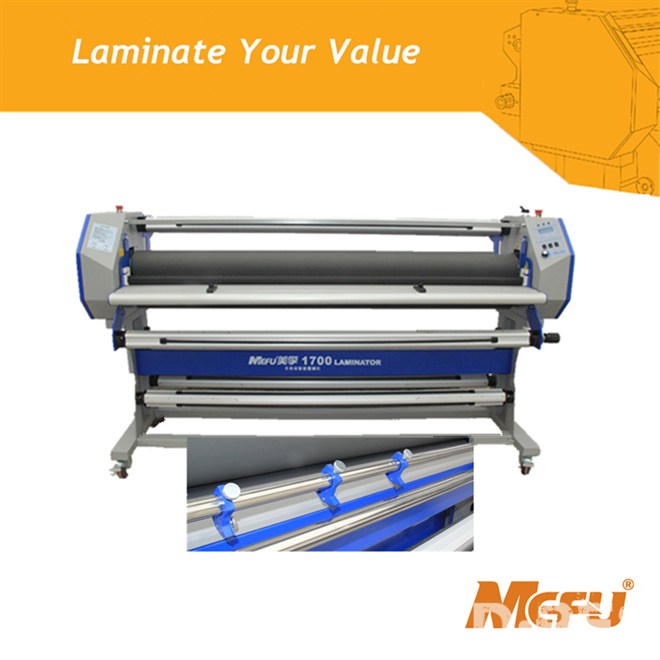

Single-side Full-auto Hot and Cold Laminator with TRIMMER
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF1700-C1
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai/Guanghzhou
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Packaging:
wooden case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

Description

MF1700-C1 is the newest wide-format laminating machine specially for high-end market by Mefu.Use air cylinder to adjust the height, left a max nip opening of 30mm.Pressure can be adjusted automatically ensures the roller not to harm your material.Original auto peel-off roll and take-up roll saves your labor, makes the whole process more efficient and easier than ever.

This laminator is also aviable in MF2030-C1 and MF2400-C1.



Parameter

Brand

Mefu

Max lamination width

1620mm

Max lamination thickness

30mm

Speed

0-7m/min

Max temperature

150℃

Height adjust

Air cylinder

Heated method

Infrared

Preheating time

10-15mins

Power consumption

0.8-1.0kw/h

Power input

2200w

Volt input

110/220v

N.W.

210kg

Packing size

700×2040×1180mm

 Each of this machine needs an air pumper.



Features

Single-side Hot and Low-heat lamination

Highly-auto saves labor

Lamination width up to 1620mm

Accurate pressure adjustment ensures better finishes

 Multiple uses without bubbles



Configuration

 Adjustable ISO quality 90w motor

 Stainless steel front and back working table

 130mm upper silicon roller

 130mm anti-glue lower silicon roller

 Auto-take-up system

 Anti-tilt and anti-fold device(Origin)

 Pressure and height adjust air cylinder

 Infrared temperature control device

 Multi-function footswitch

 Hand-protect device and squaring guid



                        For further information, please contact: mefu-ex@hotmail.com
