Single-side Hot and Cold laminator machine/ Laminating machine/ laminator (MF1600-F1+)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF1600-F1+
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
shanghai
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Wooden case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

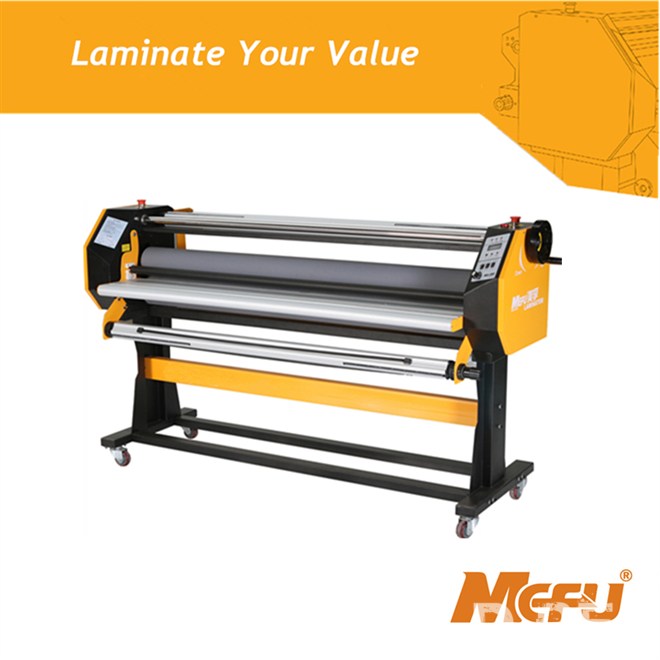

MF1600-F1+ is a 1.52m/60'' wide format full-auto hot and cold laminator designed as an

inexpensive option for a wide range application.An ideal laminating solution for Use matte

or gloss thermal films can save your cost during hot lamination. The numerous features

included with the 60in wide format MF1600-F1+ hot and cold laminator make it so easy to

use finishing becomes one person.


This laminator is available in different sizes: 1270mm/51''(MF1300-F1+).





Roll with self-locking mandrel provides                           2

Upper roller lift up and

down by  a hand



easy loading of your prints

wheel ensure even pressure

of both sides



Once laminated, the prints can

wound             4 Fully adjustable fraction of rolls through

onto the take-up roll

                                        tension grips




5 Thick pivoting feeding tray with round

edge to avoid damage to prints during

lamination



Parameter

Brand

Mefu

Max width

1520mm

Speed

Up to 7m/min

Laminating type

Hot and cold

Heating method

Heated roller

Rollers

Silicon

Diameter of upper roller

130mm

Max thickness

20mm

Warm up time

10-15 min

Temp range(Cold lamination)

40°C-60°C

Temp range (Hot lamination)

85°C-95°C

Max temp

120°C

Fixed Volt

AC220V-240v  50HZ-60HZ

Fixed power

2200W

Fixed current

12A

Motor power

60W

Reverse function

Yes

Laser safety

Optional

Foot pedal switch

Yes

Packing size

700×2080×1180mm

N.W.

180KG

The F1 series provides the following features:



Optimum performance

• High quality silicon rollers for better applications

• Adjustable settings for increased capacity and versatility

• Fast processing speeds - up to 7m/min

• Unique anti-tilt and anti-fold system ensures clear output

• Hot & cold lamination.



Ease of use

• High release silicone rollers for easy cleaning

• Simple film tension adjustment

• Light weight drop-in supply shafts with auto-grip for easy loading

• Roll-to-roll operation (from bottom unwind)



Safety

• Foot switch for hands free operation

Laser safety eyes and 2 emergency stops

• CE
