Flatabed laminator machine ( MF1350-B2)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MF1350-B2
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Shanghai/Guanghzhou
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Packaging:
wooden case
Mr. Du Yang



Send a Message to this Supplier

Product Details Company Profile

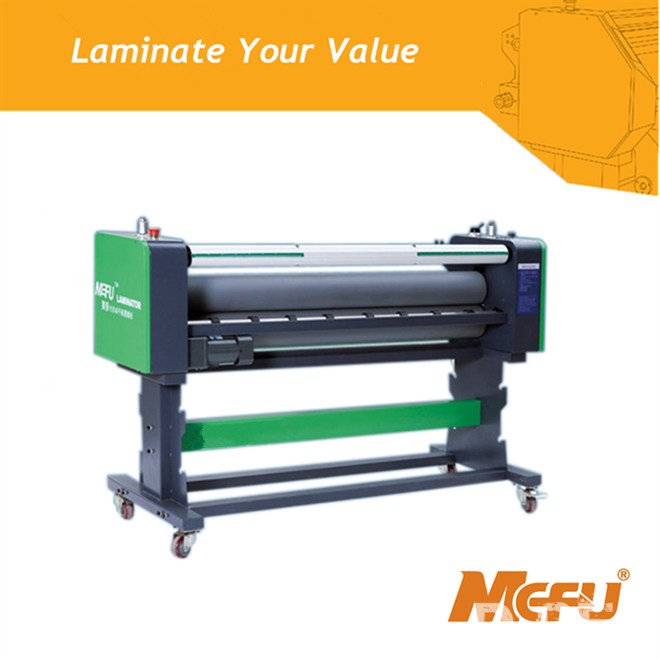

MF1700-B2 is a mid size flatbed mounting and laminating machine, with the max working size up to 1.62m/64’’ can meets most application needs. Fully adjustable speed, temperature, nip gap increased capacity and versatilityIts 4 pieces flatbeds can be lengthen or shorten at will, makes Piece-to-Piece application easier and faster. MF1700-B2 can be used with Glass, HDF, MDF, PVC Boards, A-Alum plates Acrylic etc. Material guid improve efficiency for heavy duty works. Fixed speed foot pedal provides hands-free control and improves handling when mounting graphics.

Model

MF1700-B2

Type

Hot and Cold

Max lamination width

1620mm/64’’

Max lamination thickness

Up to 30mm/1.2’’

Heating

Infrared

Heating type

Heated top roller

Max temp

100°C/212°F

Warm up time

15-20 min

Max Speed

Up to 7m/min

Roller

Silicon

Roller diameter

130mm /5’’

Power

2200W

Volt

110V/220V

Height adjustment

Air pressure

Pressure adjustment

Air pressure

Silent air compressor

Optional

Foot pedal switch

Yes

Flatbed

4 Pcs, 0.8m/pc

Certificate

CE; RCM, ROHS

Static-free

Yes

Optimum performance

 Heat-assist cold lamination for bubble-free application

• Adjustable settings for increased capacity and versatility

 Fully adjustable nip-gap and pressure for precise application

 Available for many flat hard substrates



Ease of use

• Automatic fully adjustable pressure and nip gap

• Light weight drop-in supply shafts with auto-grip for easy loading

• Foot pedal switch for pieces application



Safety

• Foot switch for hands free operation

• Laser safety eyes and emergency stops

• CE
