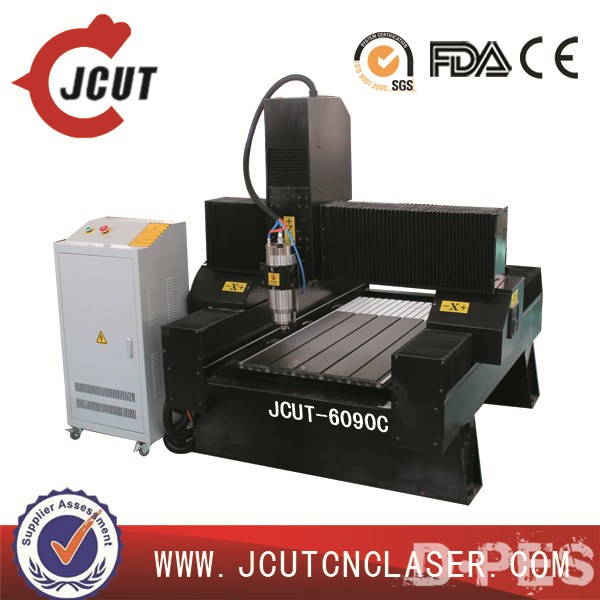

3D stone cnc engraving machine/stone sculpture cnc router JCUT-6090C(23.6''x35.4'')
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-6090C
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

3D stone cnc engraving machine/stone sculpture cnc router  JCUT-6090C(23.6''x35.4'')



Applications:

This series of models are mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.

Buying guide

To choose a suitable machine for your works,pls tell me:

Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port

Certifications



Parameter:

JCUT MODEL

JCUT-9015C

Working Area (X*Y*Z)

600X900X300mm(23.6X35.4X11.8inch)

Table size

750x1050mm

Processing accuracy

0.03mm

Repositioning accuracy

0.01mm

Spindle

4.5KW water-cooled spindle motor

Spindle rotating speed

0-24000rpm/min

Max Moving Speed

17000mm/min

Working speed

0-8000mm/min

Guideway

HIWIN square linear guideway

Driving mode

Z-Ball screw ,XY-Rack drive

Voltage

AC380V/50Hz

Max. Power consumption

6.2KW

Feeding Height

300mm

Drive motor

Stepper motor

Command

G.code , mmg , plt , uoo,HPGL

Controlling software

Ncstudio software

Compatible Software

Type3, Artcut, ArtCAM, masterCAM software

Certificate

CE,FDA

Pack dimensions

1350mm X 1800mm X 1750mm wooden trunk

Net weight

600KG



Samples:

 Other stone router models:



Optional parts:

Tool BOX:

Factory pictures:



 Freight:

we send the machine by sea to your nearest sea port or to your door,

please tell us your port or detailed address and zip code,we will count out the shipping cost.



 24hours online technical support can be offered .



12months machine warranty .



Looking forward to Agent all over the word .



Machine size and specification can be customized according to your needs.
