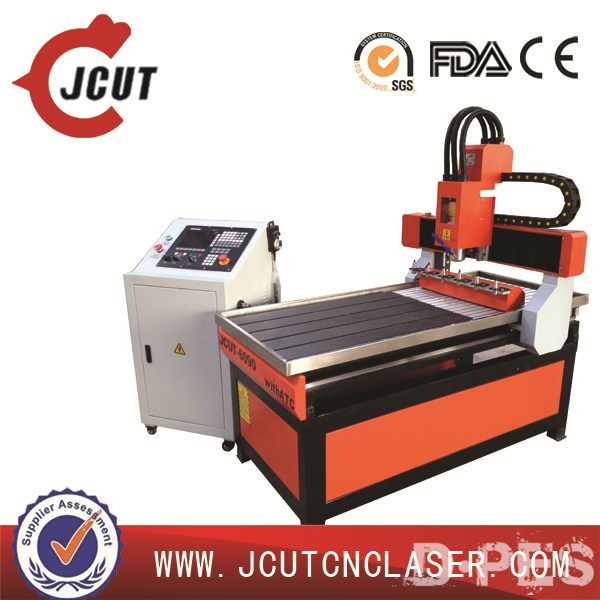

3D Wood Carving CNC Router Machine 6090 Furniture Marking Equipment JCUT-6090ATC
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JCUT-6090ATC
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Qingdao
Payment Terms:
T/T,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
standard wooden trunk for export
Mr. Li Pengfei



Send a Message to this Supplier

Supplier Details
Product Details Company Profile

3D Wood Carving CNC Router Machine 6090 Furniture Marking Equipment    JCUT-6090ATC

Applications

1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.

4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.

5. Architectural models: engraving fine window, fencing and wall patterns, etc.

6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.

7. Label: engraving character, number, and other pattern on label for products and on product directly.

Buying Guides

To choose a suitable machine for your works,pls tell me:

Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port



Specifications:

Items

JCUT-6090ATC

Machine structure

Whole cast iron machine body

Work dimensions

600 x 900 x 200mm

Tool magazine

6pcs linear tool magazine under gantry

Guide way

Linear guideway

Working table

Aluminum T slot working table(optional:vacucum table/Vacuum table+T slot)

Driving mode

ballscrew

Feeding height

200mm

Max. Speed

17,000mm/min

Working speed

0-10,000mm/min

Mechanical precision

0.01mm

Compatible Software

type 3 software, Artcut software, Artcam software

Max. Power consumption

3kw

Power source

AC 220/380V

Driver type

Servo motor

Spindle

3KW variable speed, water cooled motor

Spindle speed

0 - 24,000rpm /min

Blade diameter

3.175mm, 4mm, 6mm,8mm,10mm,12mm,12.7mm

Control system

Nk260 control(optional:Taiwan LNC or Syntec)

Command

G code, u00, mmg, plt

Running circumstance temperature

0-45  C

Relative humidity

30% - 75%

Packing dimensions

1700*2300*1600mm

Gross weight

400kg

Other 6090 modles:

Samples:





Key point:
Please kindly tell us your engraving or cutting materials, and materials' size.
Then we can quickly check and recommend to you the right machine with right working area.



Freight:
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.

Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
