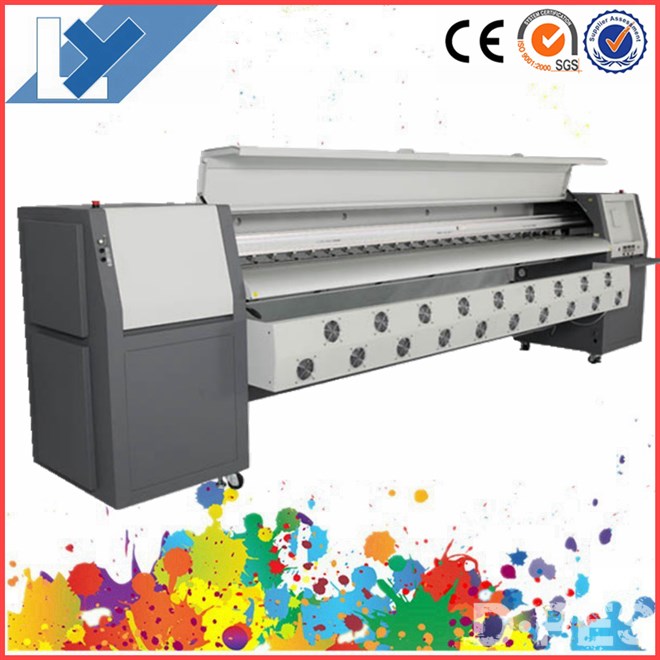

Phaeton UD-3278K 3.2m Canvas Printing Machine / Canvas printer 4 or 8 spt510/50pl head 4 color
1. Equipped with 4 /6/8 SPT510 print heads
2.Full aluminum platform, high quality and long life.
3. Self-developed automatic cleaning and capping system which make the operation and maintenance convenient.
4. X,Y axis AC servo motors, which is stable and durable..
5. Bearing and rail with less noise, low resistance and no vibration.
6. 6 color printing,the quality output achieves 46 m2/hr
7. Individual color purging minmizes the waste of the ink
8. 3 way intelligent heater improve the printing quality
9. Adopt USB2.0 output system,which is faster and more flexible.
High printing quality, high resolution
Equipped with 4 or 8 510/35pl heads
High resolution, CMYK 4 color printing
Excellent Design
Can print both flex banner, vinyl sticker, one way vision
Environmental Protection
Using solvent ink, suitable for both indoor and outdoor printing,
Small odor good for enviroment.
Professional Service
One year warranty for all machine
24 hours on line tech support
Specification:
Model
|
UD-3208P
|
Printhead SII Printek Inc.
|
SPT510-35PL
|
Number of printhead
|
8 Heads
|
Maximum print width
|
3,200mm
|
Print Speed (m2/h)
|
Print mode
|
Standard output(m2/h)
|
D
|
2 pass 76
|
S
|
3 pass 51
|
Q
|
4 pass 34
|
HQ
|
4 pass 26
|
C
|
-
|
Ink
|
Type
|
Solvent Ink / ECO Solvent Ink
|
Color
|
6 Color (C,M,Y,K,Lc,Lm)
|
Capacity
|
1L or 5L per Main Tank of Each Color
|
Ink Supply System
|
Low Ink Dectector, Auto or Manual Ink Supply
System
|
Media Width
|
Maximum 3,300mm
|
Media Type
|
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc.
|
Auto Media Feeding System
|
Equipped (Max. Media Weight 80kg)
|
Auto Cleaning System
|
Individual Positive Pressure Cleaning
|
Pre-heating & Drying System
|
Equipped
|
Clamp
|
Equipped
|
Print Interface
|
USB 2.0
|
Printhead Height
|
2 to 6 mm from Media
|
RIP Software
|
Maintop, Ultraprint, Photoprint, Wasatch, Topaz
|
Input Power
|
AC 220V, 50Hz/60Hz
|
Machine Dimension / N.W
|
L4, 500 x W905 x H1,260mm / 348KG
|
Package Dimension / G.W
|
L4, 590 x W1,050 x H890mm / 591KG
|
Requirement
|
Temperature:20°C-28°C Humidity:40%-60%
|
Challenger INKJET RINTER Details
Printing Software
More detail photos
Printing Sample
what our machine can print ?
A:PVC Flex Banner,Poster Paper,Photo Paper,Backlit Film,One Way,Vision Vinyl,Reflective
Film,Ceiling Mantle,Wall Paper/Decal,Car StickerMesh/Canvas,Adhesive PP,Transparent Films,
etc
where are they applicated ?
A:Large format light boxes,Outdoor displays,Airport light boxes,Building murals,In-storedisplays,
Wall paper decoration,Backlit bus shelter,etc
Shipment Term
1. By Sea : EXW or FOB 15-35 working days
2. By Air :EXW or CIF 7-15 working days
Our Certificate
After-Sales Service
1) Warranty Time: 1 year, within this period we will send spare part free to you if there are any problems with them (except artificial damage).
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We have professional engineers available to service machinery overseas, once we receive your inquiry about fault we will reply you within 24 hours, and offer you any technical service about machine.
4) Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare
parts with competitive price.
5) File Services: We can supply Manual Specification, Operating Video and other files you need.
6) Language: We have a professional sales team who are good at English to ensure zero communication barriers.
