Home >> Products >> Digital Printers >> UV Printers >> Galaxy UD-2512UFW 2.5 x1.2m high quality wide format uv printer
Galaxy UD-2512UFW 2.5 x1.2m high quality wide format uv printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
UD-2512UFW
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
10
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
GuangZhou
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
300 Set/Sets
Delivery Time:
Month
Packaging:
You can make payment by western union, or T.T by bank transfer 50% payment depoist payment, we can make sea shipping to you.Against Bill of Lading, you pay rest 50%
Mr. Liao Jimmy



Send a Message to this Supplier

Supplier Details
[Shenzhen,China (Mainland)]
Business Type:
Manufacturer,Trading Company,Distributor/Wholesaler,Business Service (Transportation, finance, travel, Ads, etc),printer
Product Details Company Profile

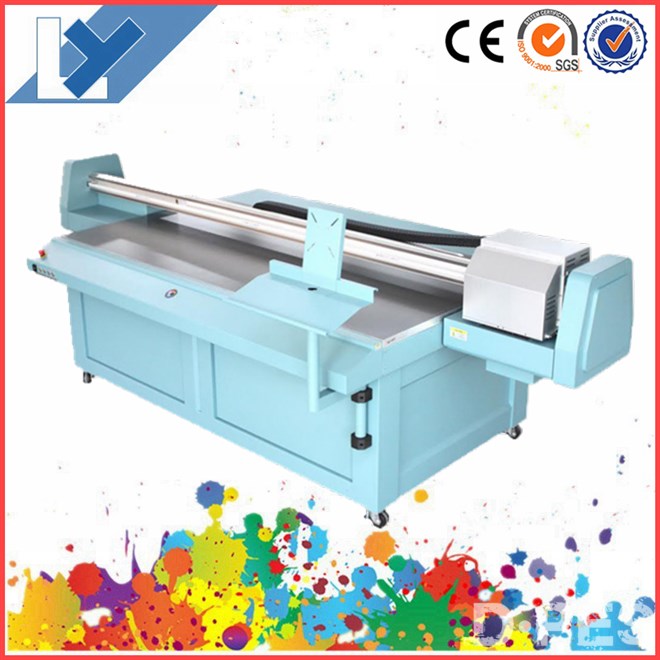

Galaxy UD-2512UFW 2.5 x1.2m high quality wide format uv printer


1,Low ink sensor, auto or manual ink supply system.

2, Double four color printing, vivid color & high speed .

3, X, Y axis AC servo motor is used to run the carriage quicker and more stable.

4, Individual color cleaning minimizes the waste of the ink;

5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;

6, The entire printing platform and the girder are made of the alloy-aluminum

Specifications

Model

UD- 2512UFW

Printhead

SII Printek Inc

 DX5

Number of Printhead

2 Heads

Printing Speed

Printing mode

Standard Output (m²/hr)

Draft Model

6PASS 11 m²/hr

Standard Model

8PASS 8 m²/hr

Quality Model

12PASS 5 m²/hr

High quality

16PASS 3 m²/hr

Maximum Printing Width

2,500mm x 1,260mm

Ink

Type :

UV Ink

Color :

4 Colors(C,M,Y,K)

Capacity :

1L or 5L Per Main Tank of Each Color

Ink Supply System :

Low Ink Detector, Auto or Manual Ink Supply System

Media

Width :

2500mm

Type :

Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc

Roll Media or Sheet Media

Thickness:

4 mm(Max.)

Heating System

3 way intelligent heater

Auto Media Feeding System

Equipped

Take-up System

Equipped

Auto Cleaning System

Individual Positive Pressure Cleaning,

Anti-Clogging Flash Function & Capping System

Pre-heat & Dry System

Equipped

Clamp

Equipped

Printing Interface

USB2.0 Cable

Printhead Height

1 to 40 mm from Media

RIP Software

Maintop(equip) , UltraPrint , PhotoPrint, Topaz, Wasatch,(optional)

Input Power

AC 220V, 50Hz / 60Hz

Machine Dimension/N.W

L3,871 x W2,165 x H1,190mm / 525KG

Package Dimension/G..W

L4,150 x W2,050 x H1,550mm / 955KG

Operation Environment

Temperature : 20°C~28°C Humidity : 40%~60%





More Pictures to reference:



Our Certificate

After-Sales Service


1)  Warranty Time: 1 year, within this period we will send spare part free to you if there are any problems with them (except artificial damage).

 2)  Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

 3)  Technical services: We have professional engineers available to service machinery overseas, once we receive your inquiry about fault we will reply you within 24 hours, and offer you any technical service about machine.

 4)  Lifelong Services:  We provide lifelong services for all the products we sold out, and supply the spare

 parts with competitive price.

 5)  File Services:  We can supply Manual Specification, Operating Video and other files you need.

 6)  Language: We have a professional sales team who are good at English to ensure zero communication barriers.

Company Information


   Kong Hong LiYu Technology Co.,Limited is the leading manufacturer of quality direct to wall inkjet printer, industrial coding and marking equipment. We are committed to improving the quality of products and services by providing high quality and cost effective products that meet our customers' needs. LiYu has more than 15 patents, advanced production line, gathered extensive knowledge engineer, flexible payment terms, strictly quality control of parts and finished goods, professional after-service.

   We have provided solution and service to customers from 120 countries in different fields and will continue to embrace and create a better future with open mind.
