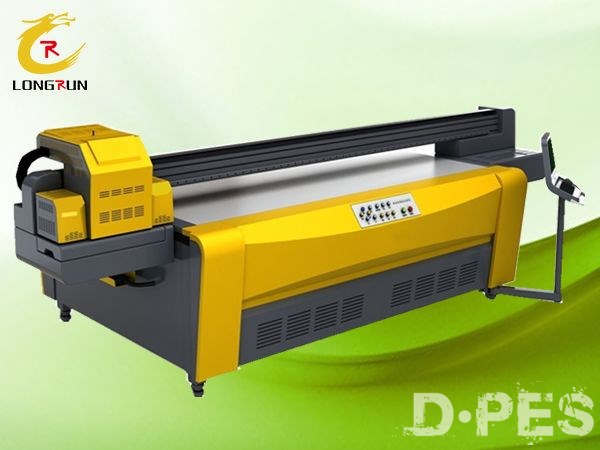

Lr-2513 UV Flatbed Printer with 5 Seiko Spt1020 Print Heads
Feature
1. Automatic cleaning system
2. Continuous Ink Supply System (CISS)
3. Printing speed about 18-40 sqm/h
4. Can print 3D and embossing effect
5. Anti crash device to protect head
6. Industrial seiko 1020/12pl print heads for heavy duty printing
Specifications
| Model |
LR-2513 Seiko uv flatbed printer |
| Print size |
2500mm*1300mm |
| Print head |
5 Seiko print heads (1020--12pl) |
| Print height |
120mm |
| Print color |
colors (C, M, Y, K, W, LC, LM ) |
| Print speed |
Sketch model:360dpi 2 pass 35sqm/hr |
| Standed model:720dpi 6 pass 25sqm/hr |
| High precious model:1440dpi 8 pass 15sqm/hr |
| Application |
For all kinds of flat materials. Such as glass, ceramic tile, acrylic, wood, leather, metal etc... |
| Software |
Ultraprint |
| interface |
USB3.0 interface |
| Operation system |
WindowsXP,2003,7,8 | MAC | Linus |
| Color control |
International standard ICC |
| Lead time |
3-5 days after payment |
| Print technology |
1.Vacuum table for strong adsorption |
| 2.2 pcs UV mercury lamp for curing |
| 3.Automatic Ink Sensor to avoid ink lacking |
| 4.Continuous Ink Supply System |
| 5.Uni-directional and Bi-directional printing can be optional |
| 6. Negative pressure circulation ink supply system |
| Technical Support |
1.Two years warranty and Lifetime maintenance |
| 2.Engineer is available to service oversea |
| 3.Free Technical Training in our factory |
| 4.Online Support (Video , remote control , etc) |
| Print resolution |
Max :1440dpi *1440dpi |
| Environment |
Temperature 10-35ºC |
Humidity :40-60% |
| Electrical Spec. |
Power |
3000W |
| Consumption |
Working 2.5kw.h |
| Cost |
1.Consumable cost : USD0.8 - USD1/ sqm ( full color printing ) |
| 2.Labor cost : only 1 worker with basic computer knowledge |
| Package |
Weight |
600 KG |
| Package size |
4300*2300*1500mm |
| Packing |
Wooden Case Fumigation |
More Pictures to reference:
Our Certificate
After-Sales Service
1) Warranty Time: 1 year, within this period we will send spare part free to you if there are any problems with them (except artificial damage).
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We have professional engineers available to service machinery overseas, once we receive your inquiry about fault we will reply you within 24 hours, and offer you any technical service about machine.
4) Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare
parts with competitive price.
5) File Services: We can supply Manual Specification, Operating Video and other files you need.
6) Language: We have a professional sales team who are good at English to ensure zero communication barriers.
Company Information
Kong Hong LiYu Technology Co.,Limited is the leading manufacturer of quality direct to wall inkjet printer, industrial coding and marking equipment. We are committed to improving the quality of products and services by providing high quality and cost effective products that meet our customers' needs. LiYu has more than 15 patents, advanced production line, gathered extensive knowledge engineer, flexible payment terms, strictly quality control of parts and finished goods, professional after-service.
We have provided solution and service to customers from 120 countries in different fields and will continue to embrace and create a better future with open mind.
Looking Forward your Inquiry......
Sales Manager ：Jimmy
Mobile & WhatsApp: 0086-13058108830
Skype: Jimmy@hkliyu.com
Email: Jimmy@hkliyu.com
Printing samples
Printing samples
Printing samples
