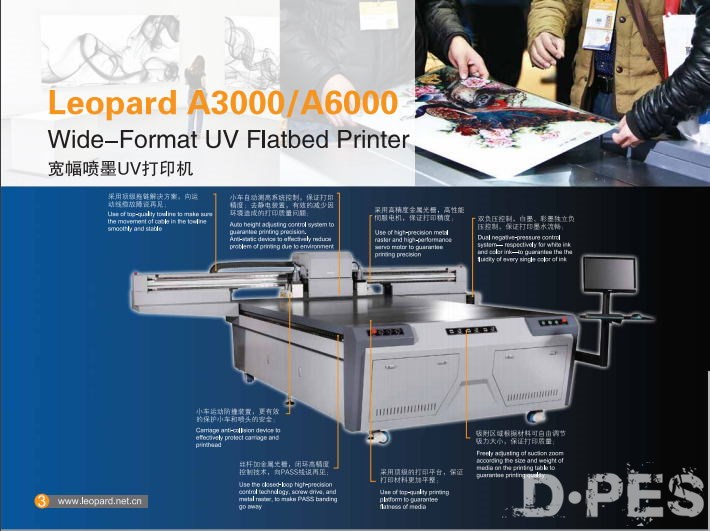

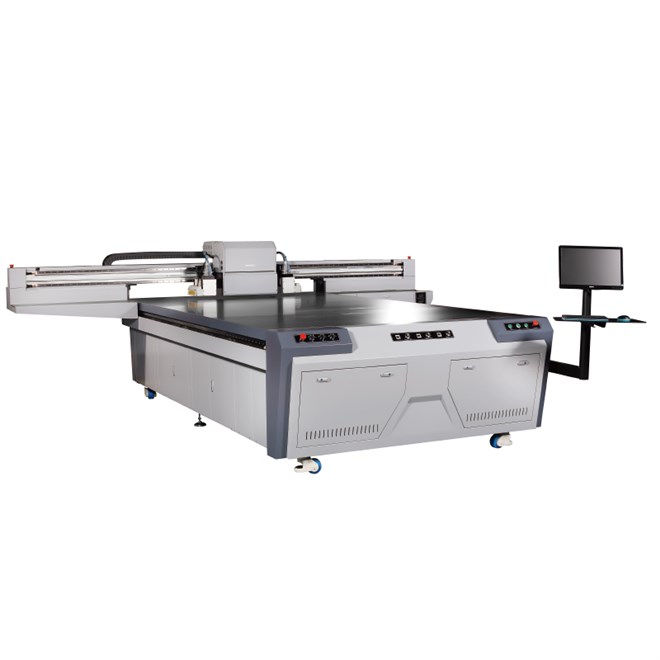

Leopard A3000/A6000 Wide-Format UV Flatbed Printer

Leopard A3000/A6000 Wide-Format UV Flatbed Printer is delicated industrial UV flat bed,specially designed for printing of high-quality rigid materials.It is widely applied on numerous rigid materials. In addition,UV ink is harmless,maximizing the protection of environment and human health.

Vista V3000/V6000 is designed for high resolution,high stability and high efficiency. V3000/V6000 has the world’s leading printing control system, world’s intelligent control functions on demand and high-efficiency reciprocating print.

Accurate double-sided printing function represents your eye-poping achievements in indoor, outdoor, decoration, sign and screen printing applications.

Leopard A3000/A6000 is delicated industrial UV flat bed,specially designed for printing of high-quality rigid materials.It is widely applied on numerous rigid materials. In addition,UV ink is harmless,maximizing the protection of environment and human health.
Leopard A3000/A6000 is designed for high resolution,high stability and high efficiency. V3000/V6000 has the world’s leading printing control system, world’s intelligent control functions on demand and high-efficiency reciprocating print.
Accurate double-sided printing function represents your eye-poping achievements in indoor, outdoor, decoration, sign and screen printing applications.

 7pcs of KM1024i/13pl printheads ensure perfect reproduction of full color image,fine text,and clear reproductions of
subtle levels while reducing ink consumption.8 sub ink tanks(CMYK+W+V,CMYK+2W,CMYK+LC+LM,CMYK+LC+
LM+2W) meet high load production requirements.It can perform on uncoated rigid media with 720×1440dpi high
quality output.Media includes corrugated board,PVC,wood board,glass,tile,metal plates,form board and other  flat
media with thickness less than 12cm.It could be widely used in display panets,stage background ,and large outdoor
advertising,indoor posters,and POP.


◆ Using 360dpi high resolution, high speed industrial printhead makes printing output more outstanding.
◆ Using high-precision linear rails ensures movement without vibration.
◆ With more partitions independently controlled adsorption system, effective control of
adsorption,meanwhile, able to select the adsorption zone according to the size of the substrate, thereby reducing energy consumption.

Specifications
Printing Mode：
Print head：             KM1024i （6+1）               KM1024 (6+1)
4Pass   720*720dpi      50/45m /h                       35/25m /h
6Pass   720*1080dpi    40/35m /h                        25/20m /h
8Pass   720*1440dpi    30/25m /h                        20/15m /h
Printing Size：1200mm*2500mm/2000mm*3000mm
Media Thickness：≤120mm          Printhead carriage lifting≤120mm
Space Front-Right：≥1500mm     Space Left-Right≥1000mm
Height：≥2800mm  Max bearing  weight of working table：≤50kg/m
Temperature range：18-28℃  non-condensing
Relative air humidity：30%-70% non-condensing
Noise：≤75db                               Power：13.5KW
Max. sea level of installation : 2000m above sea level
Voltage：26A/380V,3-phase
Air pump pressure output：4.5-8.0kg/cm    Air Volume：≥0.1m /min
Size:2800*4800*1600/4500*4310*1600(mm)     Weight:1520/1660KG
