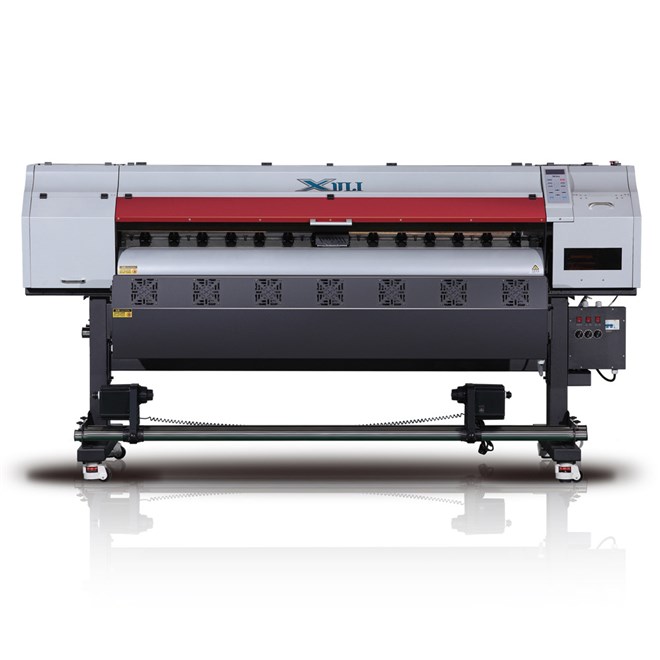

X6-1710XE/XD





x6-1710XE图













PART ONE-- OVERVIEW



XAAR 1201 print head , a new print heads that deliver beautiful prints more efficiently. After many design upgrades and numerous factory tests and customer feedback ,XAAR 1201 series announce a new revolution in the printing industry. Faster printing speed and higher printing quality are bound to set off a new upsurge in the printing industry.The new future of printer has arrived.



PART TWO-FEATURES



Whole advantage



Everything about the X6-1710  has comed to perfected. XAAR 1201 printheads is 8 grayscale printing technology appliede with variable drop size from 2.5 PL to 7.5 PL.  Every drop of ink falls exactly where it is intended, delivering beautiful images and uniform colors at production speeds.



Advantage 1:



Humanized and professinal design



Automatic feeding and take up system , support constant tension feeding without wrinkle, can easily handle 75kg media.The error correction alarm function of automatic drying system and automatic ink feeding syatem, to achieve higher intelligence.



Advantage 2:



Vivid printing quality



XAAR 1201 print head , using MEMS technology , 320 nozzles*4lines, high resolution up to 1280 dpi, 2.5 PL small drop provides the best combination og color output and photo-quality print. X6-1710 is easy to show a vivid printing performance.



Advantage 3:



Performance is greater than cost



High quality XAAR 1201 print head with the original environmental eco solvent ink to achinece perfect prining performance , but in lower cost which also is more environmental protection and color saturation.





Application



Banners

With a 1.52m material width and high print speed mode options, the X6-1710XE/XD produces vibrant, colorful banners.

Sign

Choose from a wide range of both coated and uncoated media, including backlit film

Posters

The X6-1710XE/XD produces outstanding photorealistic poster graphics regardless of viewing distance.

Vehicle Wraps

Exceptional production capability, excellent imaging and unmatched reliability make the X6-1710XE/XD outstanding for vehicle graphics applications.

Décor and Fine Art

With variable droplet technology, the X6-1710XE/XD is generates art and photographic reproductions with accuracy and brilliant color.







XAAR 1201 Printhead  X6-1710XE/XD





l  XAAR 1201 Print Head

l  1 print head / 4 colors (1~8 heads optional)

l  Draft quality printing can up to 21 sqm/hr

l  Printing width 1520mm

l  Resolution up to 1280dpi











Technical Specifications

Print

Print Head

1 XAAR 1201 Print Head

Maximum Print Width

1520mm

Print Resolution / Speed

4pass   21sqm/hr

6pass   19sqm/hr

8pass   12sqm/hr

Ink Type

Water-based Ink, Eco Solvent Ink

Ink Capacity

220ml * 4 colours

Ink Configuration

CMYK

File Format

TIFF, JPEG, Postscript, EPS, PDF, etc

RIP Software

Maintop, Photoprint, Topaz, Seeget

Media

Media Thickness

1.5mm~8mm

Media Sort

PP, PVC, Artpaper, Canvas, Transfer Paper, Flag Fabric, Removable Sticker, Lamp-Box Fabric, Banner, Vinyl etc.

Media Take-up Device

Automatic Feeding and Take-up System

Guide Rail

THK Dual Linear Rail

Media Heater

Two Heating System in front and back ( can operate separately)

Drying System

Infrared Drying System

Interface

USB2.0

Electricity Request

Power: 600w
Requirements: AC 110V±10%, AC 220V±10%, 50/60±1HZ

Operating Conditions

Temperature:20-40,

Humidity: 35%RH-65%RH

Printer Dimensions

H1220mm * L 2420mm * W 860mm

Net Weight

250kg

Gross Weight

300kg
