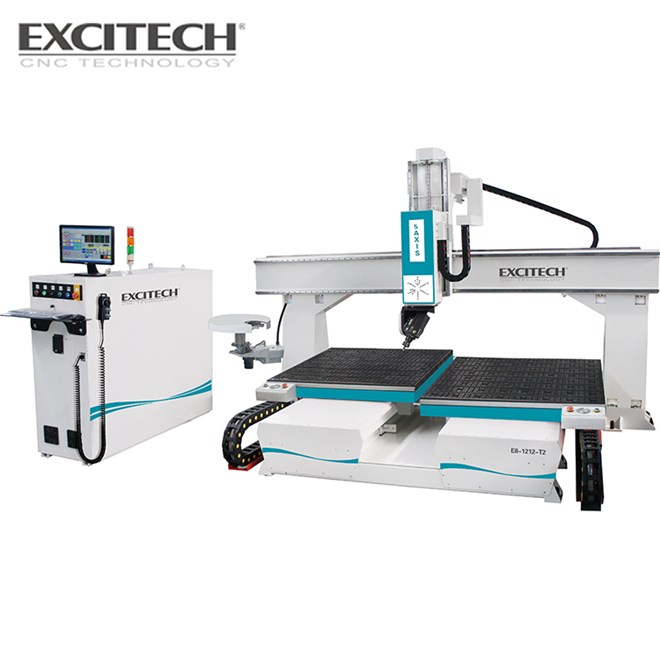

High working speed 5 axis cnc woodworking machine with Twin tables
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
E8-1212-T2
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

High working speed 5 axis cnc woodworking machine with Twin tables


Product Description

E8 machine is an entry-level five-axis processing center with OSAI controller—designed for the most demanding processing requirements, maximum precision, faster production. All parts of the machine are made of world top components, such as Italian imported OSAI control system, Yaskawa servo motor and Japan THK linear guide. Easy profiling on large work piece, well suited for 3D curved surface processing. Working speed, travelling speed and cutting speed can all be controlled separately, dramatically improve productivity.

Twin tables design doubles the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle.



Technical Parameter



Series

E8-1212D-T2

E8-1224D-T2

Travelling size

1720*1820*750mm

1720*3040*750mm

Working size

1220*1220*500mm

1220*2440*500mm

Table size

1230*1220mm

1230*2440mm

A/C Axis

A: ±185°,   C: ± 320°

Transmission

X/ Z ball screw drive,Y rack and pinion drive

Table structure

T-slot/ vacuum table

Spindle power

8.5KW Hiteco

Travelling speed

60 / 60 / 20m/min

Working speed

20m/min

Tool magazine

Carousel 8 slots

Driving system

Yaskawa

Controller

OSAI

Voltage

AC380/3P/50HZ





Detailed Images

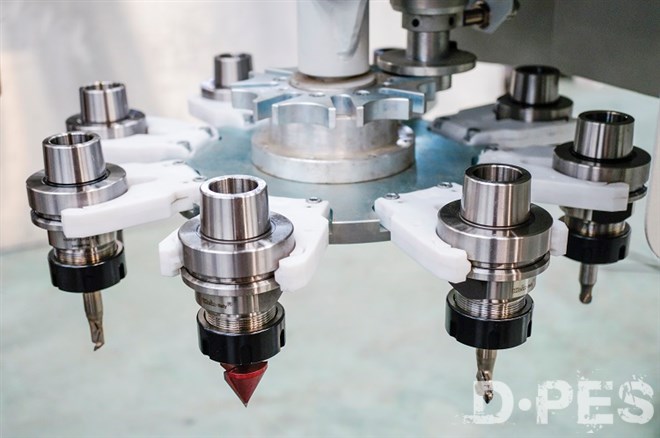

1. Tool changer

machine part 1.jpg

 The machine adopts carousel tool magazine, standard equipped with 8 tools, and   the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

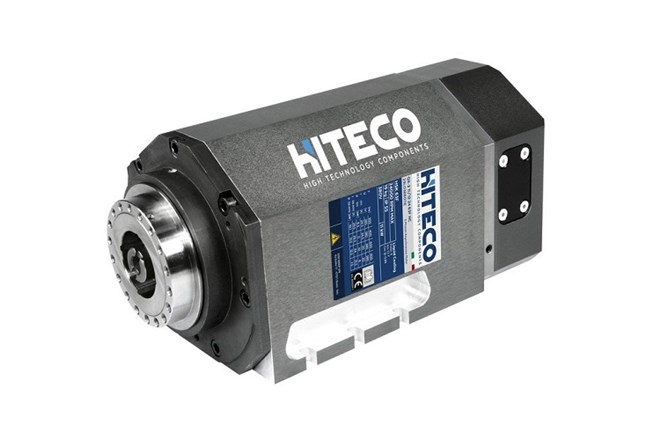

 2. Hiteco spindle

 machine part 3



Adopting Italian Hiteco high-speed electric spindle, high spindle speed and optimized processing efficiency.



3. Italy OSAI control system

machine part 2.jpg

The machine adopts the famous Italian OSAI control system and  control system is independent of the chassis, which greatly increases the operational safety, and can be moved lightly and save space.

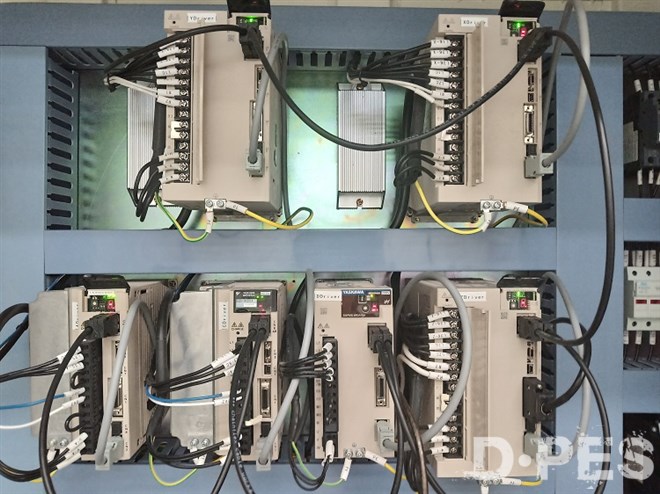

4. Japan Yaskawa servo motor and driver

machine part 4



The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.



5. Twin Tables

machine part 7.jpg

Twin tables design doubles the productive efficiency by allowing loading and unloading operations on one station without interruption the work cycle.

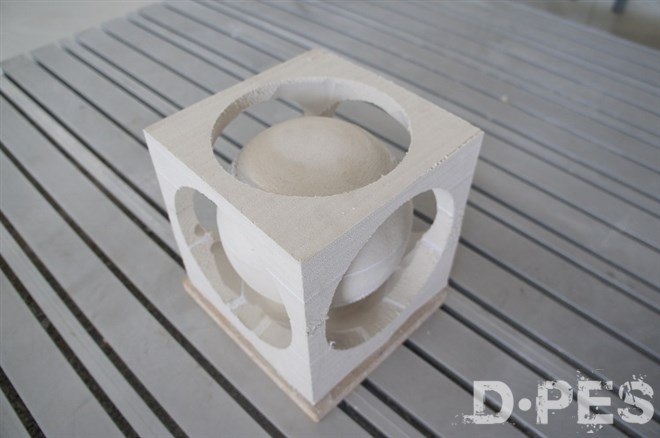

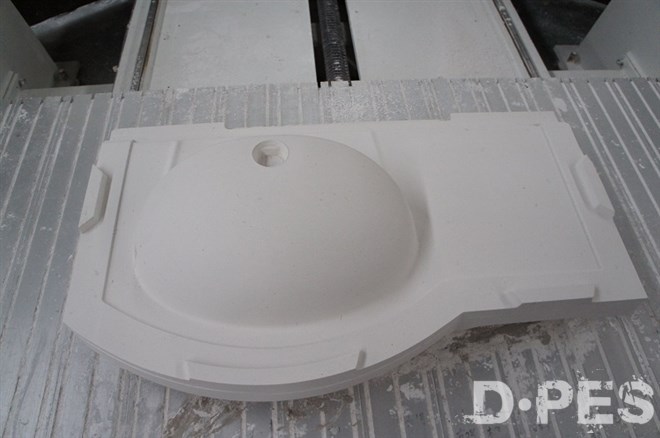

Sample

Application:

Suitable for surface processing and hollowing processing of casting wood mold, FRP wood mold, automobile foam mold, ship wood mold, aviation wood mold, paraffin mold, aluminum mold, metal mold, double curved flow mold GRG mold, etc.





 sample 1.jpg

sample 2.jpg

sample 3.jpg

sample 4.jpg



Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.Sincerely welcome to our company for field visits.




Certificate

CE Certification.jpg



Exhibition




Machining workshop

machining workshop.jpg

 We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
