Excitech panel door/cabinet boards drilling integrated solution
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
drilling cell
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

Excitech panel door/cabinet boards drilling integrated solution




Product Description

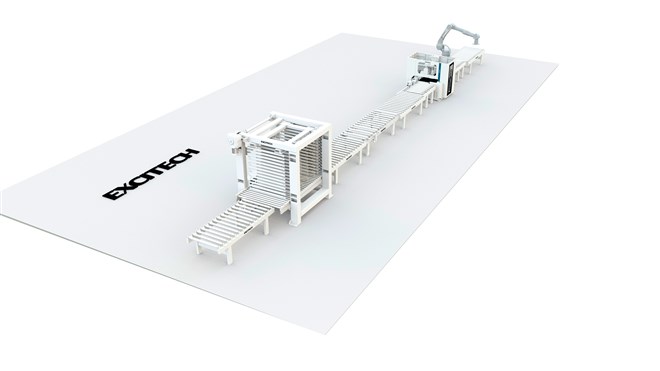

 Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Drilling Cell has temporary parts storage ETS-1230, Six sided drilling machine EHSA1224, Scan device, conveyors, Robot SAR166L-01, cabinet box, software.



Technical Parameter

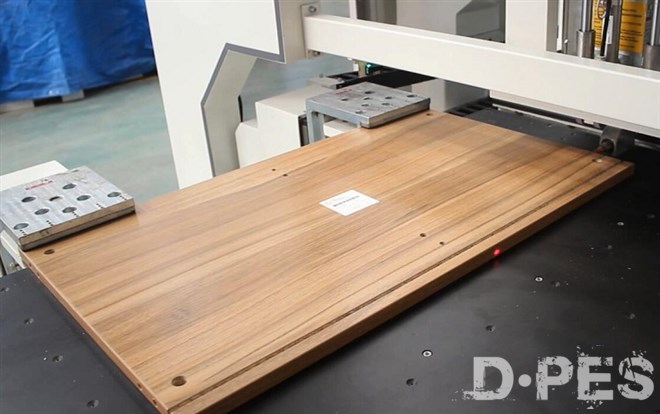

1. Six-sided Drilling Machine EHSA1224

EHSA 1224.jpg



Series

EHSA1224(Drill Bank*2)

Travelling size

4800*1750*150mm

Max Panel Dimensions

2440*1200*50mm

Min Panel Dimensions

200*80*10mm

Workpiece Transmport

Air Floatation table

Workpiece Hold-down

Clamps

Spindle power

3.5kw*2

Travelling speed

80/100/30m/min

Drill bank configuration

33 vertical(24 top, 9 bottom)+ 16 horizontal

Driving system

Yaskawa

Controller

Syntec

Voltage

AC 380V/ 3P/50HZ







2. Conveyor Table


3000*1350*900mm



3. Robot SAR166L-01

~World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design makes high acceleration and minimum vibration. Maximum speed on all axes reduces cycle time. Improved productivity by these design.
~Easy to use
  • Improved motor drive controls for accurate positioning and repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Improved maintenance item. It can do easy parts replacement and inspection.


~Energy saving
Power consumption reduced 15% from existing model by reducing the robot’s weight by 20% using newest motor drive controls.



Detail Image

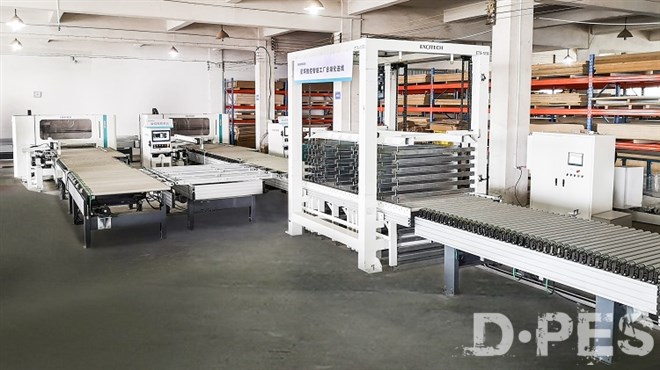

1. ETS-1230 Temporary Parts Storage


Semi-finished products can be temporarily stored in the cache bin.

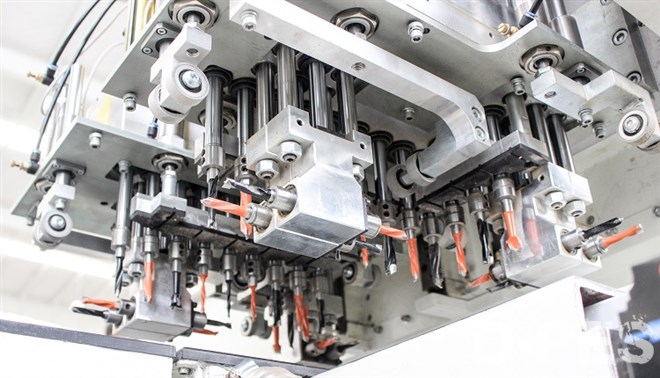

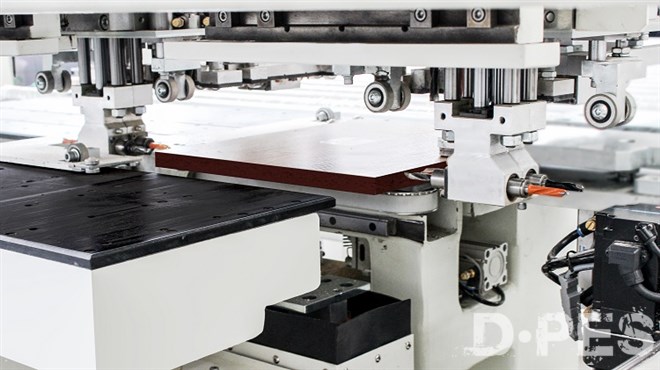

2.  Six-sided Double Drilling Bags



.jpg



3. Robot

machine part 1.jpg



Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.

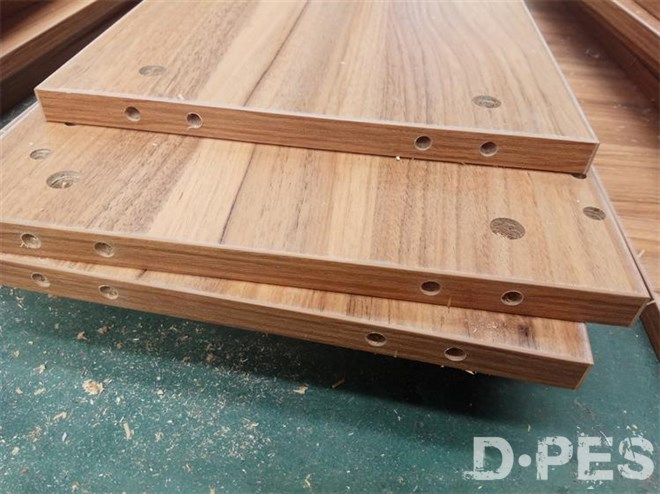

Sample



Application: widely used for processing Panel Furniture Production Line, such as cabinet door, cupboard, solid wood furniture, panel wood furniture, etc.

 sample 1_conew1.jpg



Company Information



Company introduction

~EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.

~Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.

~We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.Sincerely welcome to our company for field visits



~Certificate

CE Certification.jpg



~Exhibition




~Quality Inspection




~Machining workshop

machining workshop.jpg



Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services



 ~We provide 12 months warranty for the machine.

~Consumable parts will be replaced free during the warranty.

~Our engineer could provide technology support and training for you in your country, if necessary.

~Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
