China factory excitech ATC wood working cnc router E2-1325C
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
E2-1325C
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Month
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.
Miss. Zou Doris



Send a Message to this Supplier

Product Details Company Profile

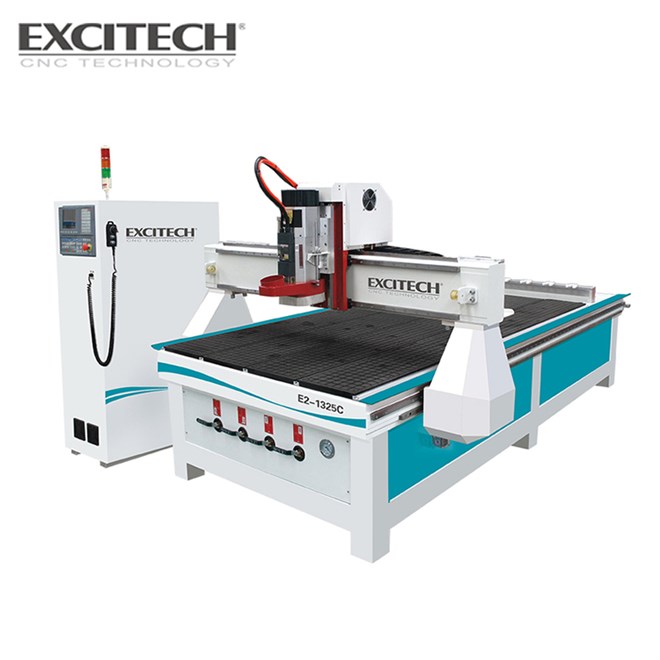

China factory excitech ATC wood working cnc router E2-1325C


Product Description



The machine is a machining center with a reinforced type of tool changer, strengthened fuselage structure , fast speed, high efficiency, fine engraving without serrated ripple, smooth bottom surface and clear outline. It is widely used for complex products processing, wide function such as boring, drilling, cutting, side milling, and edge cutting,etc. The table top adopt T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient.

Technical Parameter



  Series

E2-1325C

E2-1530C

E2-2138C

 Travelling size

2500*1260*200/300mm

3100*1570*200/300mm

3800*2100*200/300mm

Working size

2480*1230*180/280mm

3080*1550*180/280mm

3780*2050*180/280mm

Table size

2500*1230mm

3100*1560mm

3800*2050mm

Transmission

X/ Y rack and pinion drive, Z ball screw drive

  Table structure

 T-slot and vacuum table

  Spindle power

 9.6KW HSD

  Spindle speed

 24000r/min

Travelling speed

  40m/min

  Working speed

 18m/min

Tool magazine

8 linear tools

Driving system

Yaskawa

Voltage

380v/220v

Controller

Sytec/ OSAI







Detailed Images

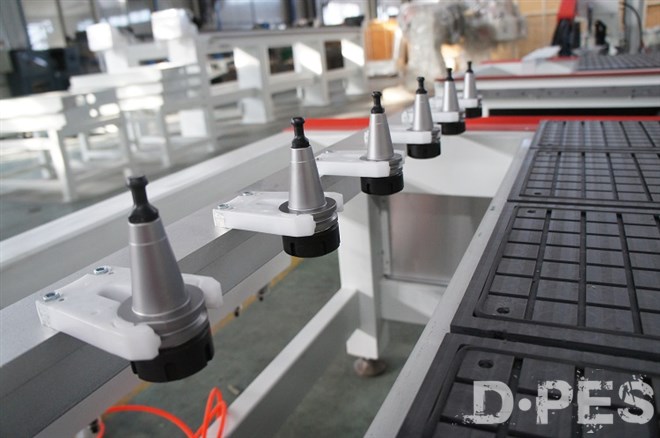

1. Linear tool magazine

machine part 3.jpg



The machine adopot carousel tool magazine, standard equipped with 8 tools, and   the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.



2. T-slot and vacuum table

machine part 1.jpg

The table adopt T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient.





3. Japan THK linear rail guide

machine part 4.jpg

 The machine adopts famous Japanese THK linear guide,with high precision, self-lubrication and long service life.



4. Japan Yaskawa servo motor and driver

machine part 5.jpg

machine part 6.jpg



The machine adopt Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

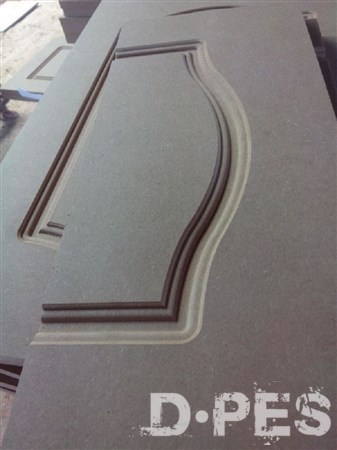

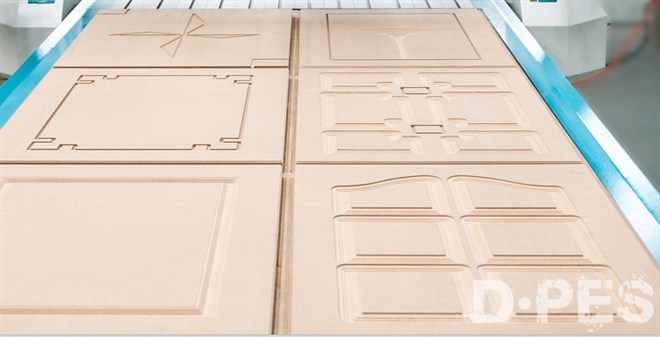

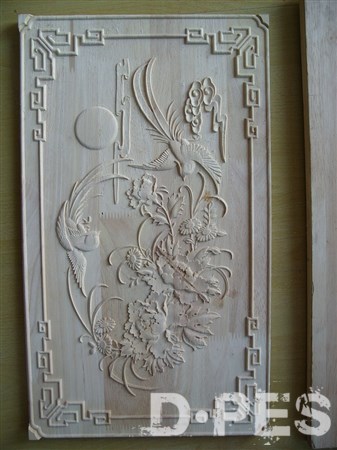

Sample

Application:

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.  It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.





sample 4.jpg

sample 2.jpg

sample 3.jpg



Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.




Ceitificate

CE Certification.jpg



Exhibition




Quality Inspection




Machining workshop

machining workshop.jpg

 We has its own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technoloty support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
