Wit-Color Large Format Printhead Repairable Solvent Outdoor And Indoor Advertising Ultra Star 3304 Printing Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Ultra Star 3304
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Shanghai Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets
Delivery Time:
Quarter
Packaging:
Standard Plywood Package for Export (L*W*H): 5.01*1.13*1.75m G.W./N.W.: 970KG/700KG
Mr. Lee Leo



Send a Message to this Supplier

Product Details Company Profile

Overview
Quick Details
Color & Page:
MULTICOLOR
Certification:
ISO9001, CE
Usage:
OUTDOOR PRINTER, Roll to Roll advertising mertrial, flex banner, PVC, Mesh with liner
Plate Type:
Roll to Roll
Condition:
New
Place of Origin:
China
Brand Name:
Wit-Color
Dimensions(L*W*H):
5.01*1.13*1.75
Weight:
900kg/700kg
Automatic Grade:
Automatic
Voltage:
220V
Applicable Industries:
Printing Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Viet Nam, UAE
Showroom Location:
Egypt, Viet Nam, Sri Lanka
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Print Dimension:
3.2
Ink Type:
Solvent ink
Key Selling Points:
Multi Color
Print Head & Quantity:
Spectra StarFire 1024 4pcs print heads
Speed:
2 pass 220 sqm/h
Color:
Cyan,Magenta,Yellow,Black
Media width:
3.2m
Media Heating:
Per & Post Media heating
RIP:
Maintop / Ultraprint / Photoprint
Type:
Digital Printer
Supply Ability
Supply Ability:
5000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard Plywood Package for Export
Port
Shanghai

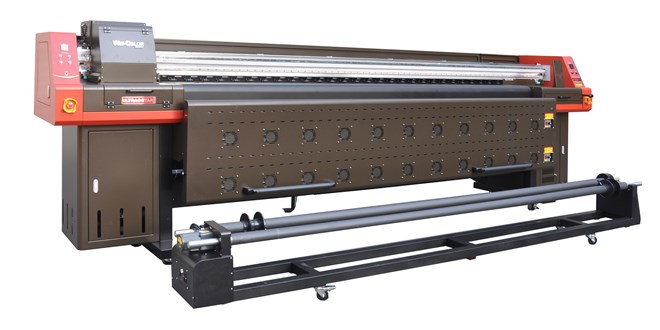

Wit-Color High Speed Solvent Printer Machine Ultra Star 3304 with 4 pcs Starfire 1024 Print Head

Product Description


wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

Wit-Color Ultra Star 3304 flex, banner,leather printer outdoor banner printing machine





3.2m printing width.

4 units Spectra StarFire 1024 all steel industrail print head.

Maximum speed of 220 sqm/h.

Drop volume of 25pl 8 level grayscale technology



wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head



wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

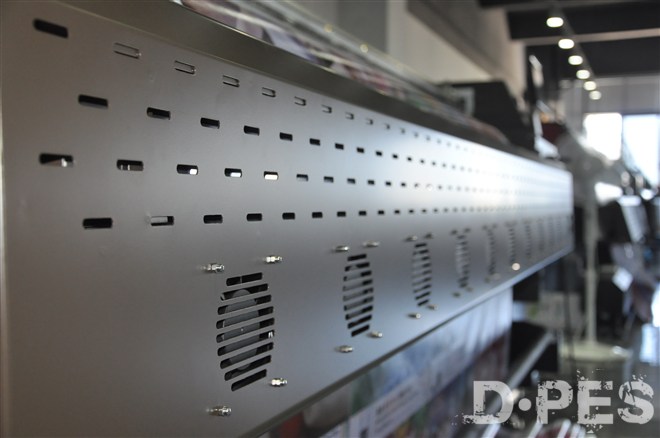

New printing panel is more wide, It can solve the problem of media wrinkling effectively .

 wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

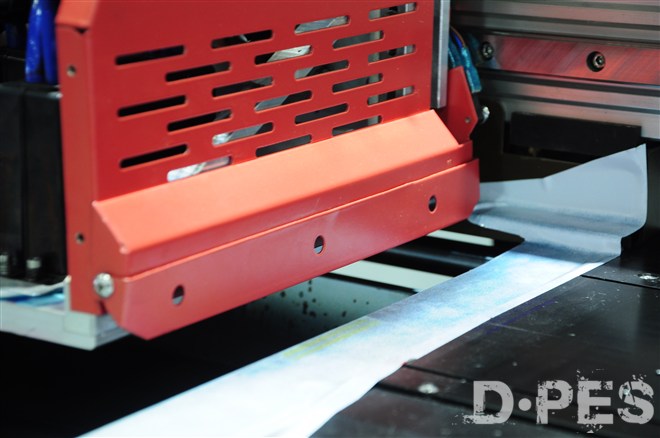

 Carriage Anti-collision system reduce the rejection rate.

 wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

Bigger gear & axis improved media stepping acuracy.





wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

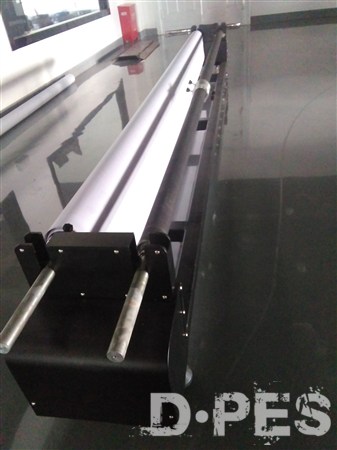

The position of media feeding roller is adjustable.

ULTRA STAR 3304 Solvent Printer

 Model

 Ultra Star 3304

 Printhead  Spectra star fire 1024 - 4 pcs
 Printing Width  3.2m
 Printing Speed  4pass 100m2 /h
 6pass 130m2 /h
 8pass 200m2/h
 Ink Type  CMYK Solvent Ink
 Media Processing  Roll to Roll + Auto Feeding + Auto Roll Up
 Media Heating  Pre & Post-Media Heating
 Media Types  All types indoor & outdoor advertising materials, such as flex banner, wall PP, vinyl and other  medias.
 Image Format  TIFF,JPG,EPS,PDF
 RIP Software

 Maintop/photoprint(standard) Onyx/Caldera(optional)

 Interface

 PCI LVDS( Windows 7)

 Operating System  Windows 7 Workstation
 Power Supply  AC220V, 50HZ±10%, UPS is required
 Power:  5000W
 PC Configuattion:  System: /Windows 7 64 Bit (Ultimate Version)  CPU: Intel I5/I7 Mainboard ASUS  P8H181/B85/Z97 Big Board RAM: KST 4GB/8GB  Hard Disk: WD 500G   Hard Disk  CD Rom: DVD  Recordable   Space for Disk C:100G at least
 Temperature &  Humidity: Temperature 20-30 ℃  Humidity 60-70%
 Packing Size

 5.01*1.13*1.75m

 G.W/N.W

 970/700kg



Features:



1. High Speed:

The speed of 4 pcs StarFire 1024 heads' could be around 200 sqm/h, it's much higher than other high-speed printers' 130sqm/h.Then time was saved, so the production and management costs were saved also, This will satisfy customers and delight employees also.Low labor cost: 1 unite Ultra Star printer is equivalent to 3 or 5 or more units general solvent printers, then less space occupation and much labor saving.



2. Color & Resolution

With 10pl and 25pl optional, the resolution of StarFire 1024 printhead is the highest among all solvent printes, which sets up the highest  quality standard in printing field.The color presentation of Wit-Color StarFire 1024 printer is incomparable with amazing colors.For all industries, it begins with price competition and ends b quality competition.



3. Fast-frying

High speed solvent printer requests fast image drying. Wit-Color solved the drying problem completely and reduced the rejection rate and labor cost.



4. Low Production Cost

 Wit-Color StarFire 1024 printer adopted continuous ink recirculation technology and equipped with original high density ink, it can print over 8 hours continuously with 40% less ink consumption.

5. Long Using Life

StarFire 1024 printhead adopted parts removable and replanceable technology. Allparts are repairable, and the ink system is replaceable. the printhead's cost is reduced tremendously.

√ Click to know more informations about printhead.

wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

Application-solvent

wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head



Why Choose Us

Why Choose Us?

1.We are professional in digital printer, printing inks, and spare parts of printers.



2.We have professional engineers who have more than fifteen years experience to help you solve all kinds of questions.



3.We have good after sale service, one year warranty, and deliver with good package and fast speed.



4.If you have any problems, our engineers can service oversea, and help you solve your questions.



5.We have a big market and a lot of customers all over the world.



6.Our annual sales are large, because we do it well.

wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

MOQ:  1
Package:  Standard Plywood Package for Export
Delivery Terms:  EXW
Delivery Times:  Within 20 working days after 100% payment was received
Payment Type:  T/T
Supply Ability:  500 sits/mounth
Port:  Shanghai
After sales Service Provided:  1. Telephone or online skype, email, wechat,etc
2.Engineers available to service machinery overseas

Certifications

wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

Recruitment agency

wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head

To be WIT-COLOR Agent, you can get:

Market Protection + Competitive Price + Technical Support + Exhibition Support +PerformanceReward = Success!



If you want to be our agent, please contact with us for further negotiation.





Company Information

wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head



Business Type:   Manufactory;
Location:   Shanghai, China;
Establishment:   Since 2001;
Factory Area covered:   30000 sqm;
Company Certifications:   ISO 9001, CE;





wit-color High speed solvent printer machine Ultra Star 3304 with 4 pcs starfire 1024 print head



WIT-Color is one of the most professional digital printing equipment manufacturers in China for over 20 years.

With independent R&D (Research And Development) center and specialized in Solvent printers withSpectra

StarFire1024 print heads, LED UV Flatbed and Roll to Roll printers with Ricoh print heads, Ecosolvent printers

with Epson print heads, Textile printers and all types inks.



There will be at least one new model launched in Wit-Color every year, now we has more than 50 series; 100

model machines, our products are still in constant innovation.

Main products:



 FUJIFILM DIMATIX SPECTRA

StarFire 1024 (25/10pl)



 RICOH

GEN 5



 EPSON

Eps3200,  DX5



 Product Line

Solvent Printers, Eco-Solvent Printers, LED UV Flatbed Printer,

LED UV Roll to Roll Printers, Textile Printers and Inks.
